BYOCNI with Cilium

Overview

Bring Your Own CNI (BYOCNI) is an AKS networking mode that lets you skip the default Azure CNI and install a custom CNI plugin of your choice — giving you full control over pod networking, IP management, and network policies.

In this guide, we will walk through how to deploy Cilium as a custom CNI using the BYOCNI approach, so that you can fully customize Cilium's configuration to suit your networking requirements.

Provision an AKS cluster with Bring Your Own CNI (BYOCNI) by installing Cilium as a custom CNI plugin through the cluster blueprint.

This workflow uses the existing namespace → add-on → blueprint → cluster provisioning flow, with the additional requirement to configure the following during Day 0 cluster provisioning:

  • networkPlugin: none
  • podCidr

The selected blueprint must include CNI add-on labeled for Cilium. During provisioning, the platform installs the CNI using the blueprint-resolved Helm chart and values before marking the cluster as successfully provisioned.

Provisioning is considered complete only after:

  • the Cilium components are installed successfully
  • cluster nodes reach Ready state

Pre-requisites

Before creating the cluster, ensure the following:

  • Download the Cilium Helm chart
  • Prepare the values.yaml file
  • Identify the required pod CIDR range

Step 1: Create Namespace

Create a namespace named kube-system.

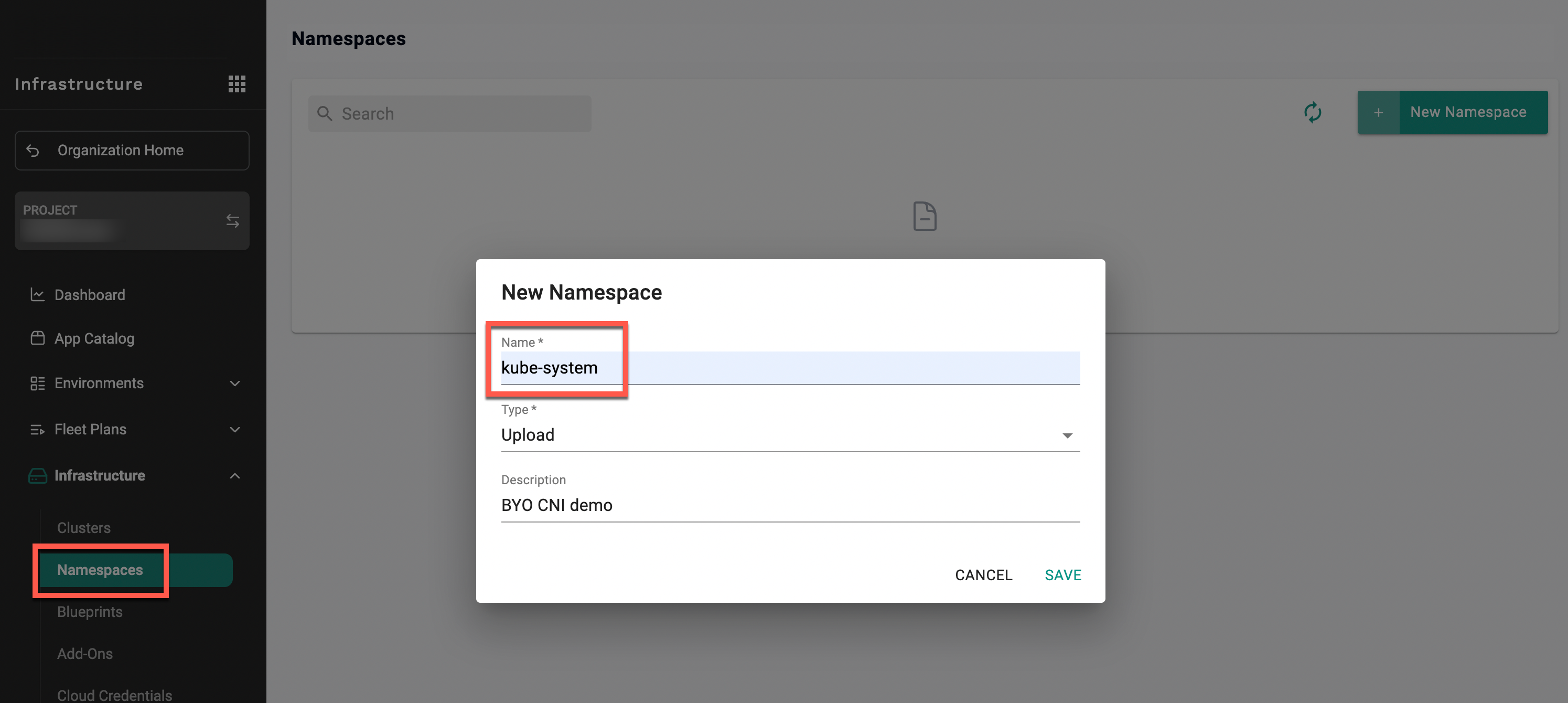

Create Namespace

Note: The namespace does not need to be published.

Step 2: Create Cilium Add-On

  • Create a Helm 3 type add-on in the controller.

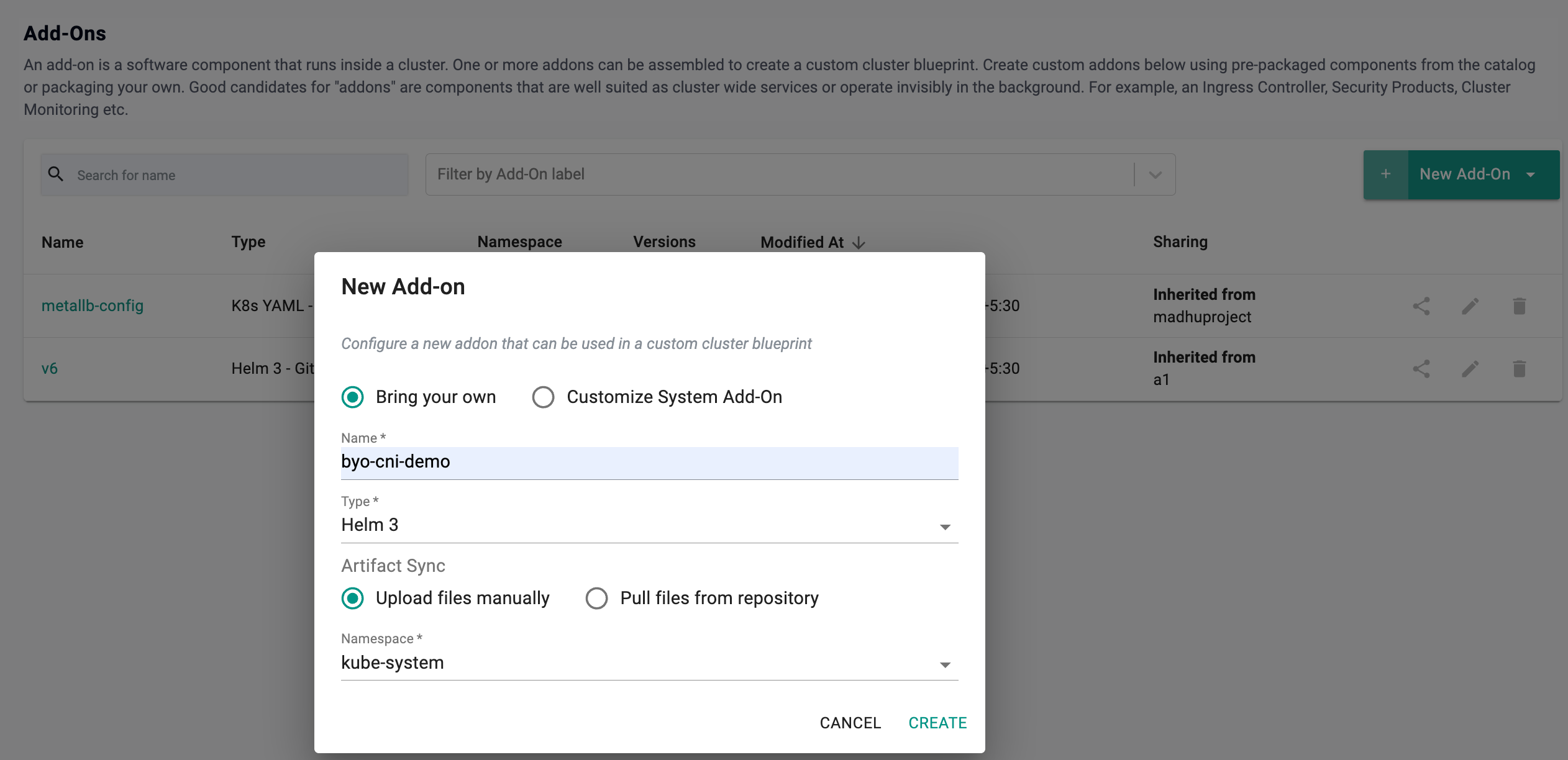

Create Add-On

  • Download the Cilium Helm chart (required version) from the Cilium charts repository and upload it to the add-on.
  • Upload the values.yaml configuration file.

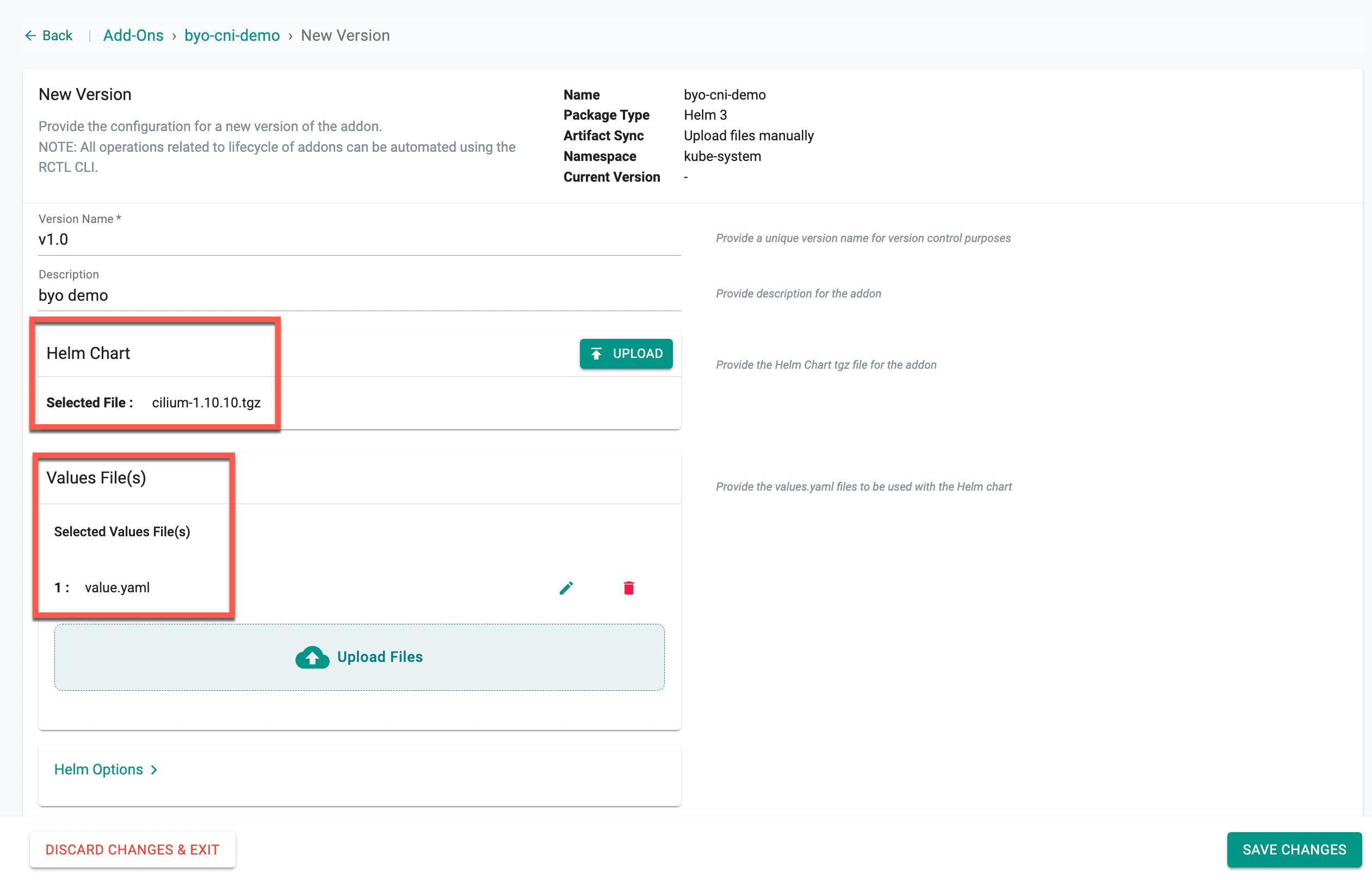

Upload Cilium Files

# Chart: cilium/cilium
# Must match AKS: spec.managedCluster.properties.networkProfile.podCidr

kubeProxyReplacement: false

routingMode: tunnel
tunnelProtocol: vxlan

ipam:
  mode: cluster-pool
  operator:
    clusterPoolIPv4PodCIDRList:
      - "10.244.0.0/16"
    clusterPoolIPv4MaskSize: 24

tolerations:
  - key: "node.kubernetes.io/not-ready"
    operator: "Exists"
    effect: "NoSchedule"
  - key: "node.kubernetes.io/unreachable"
    operator: "Exists"
    effect: "NoSchedule"
  - key: "node.cilium.io/agent-not-ready"
    operator: "Exists"
    effect: "NoSchedule"
  - operator: Exists

operator:
  replicas: 1
  tolerations:
    - key: "node.kubernetes.io/not-ready"
      operator: "Exists"
      effect: "NoSchedule"
    - key: "node.kubernetes.io/unreachable"
      operator: "Exists"
      effect: "NoSchedule"
    - operator: Exists

envoy:
  enabled: true
  affinity:
    podAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                k8s-app: cilium
            topologyKey: kubernetes.io/hostname

Step 2.1: Add Labels

After creating the add-on, add the following mandatory labels:

rafay.cni.name: cilium
rafay.type: cni

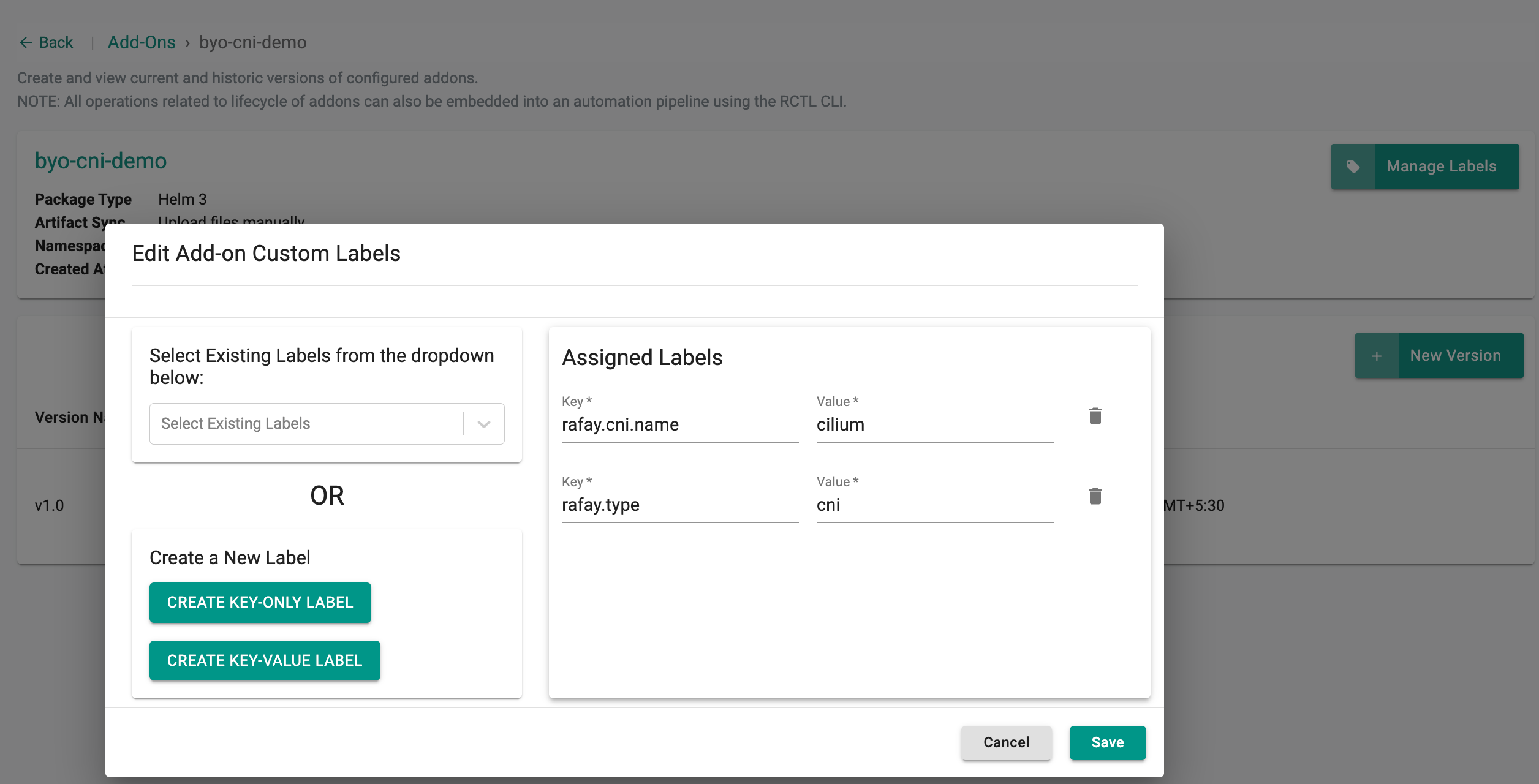

Add Labels

Alternative: Add Cilium from Application Catalog

Instead of manually uploading the Helm chart and values file, you can add the Cilium add-on directly from the Application Catalog. The catalog provides a pre-configured Cilium entry that can be deployed in a few clicks.

Select Cilium from the catalog and click Create Add-On. Choose the desired version and confirm.

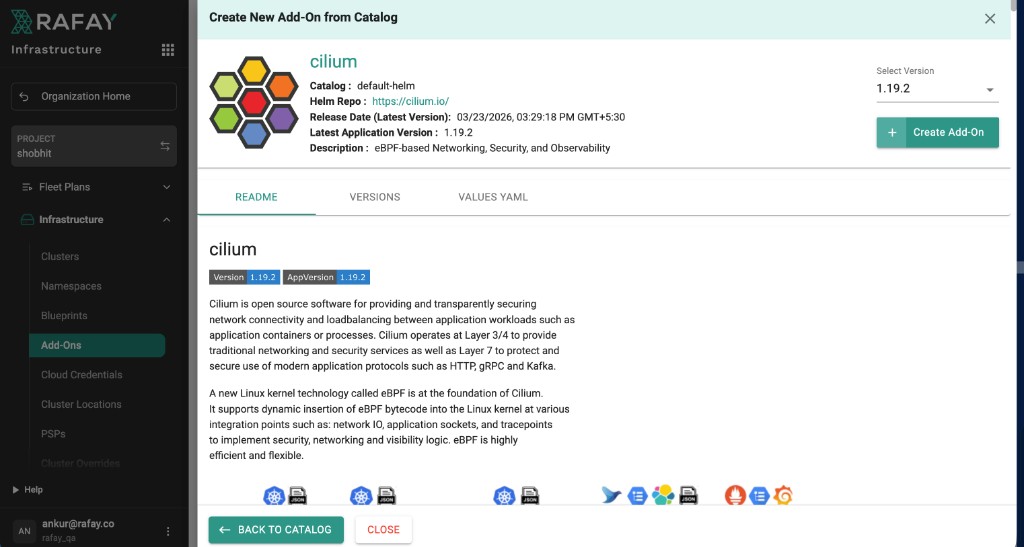

Select Cilium from Catalog

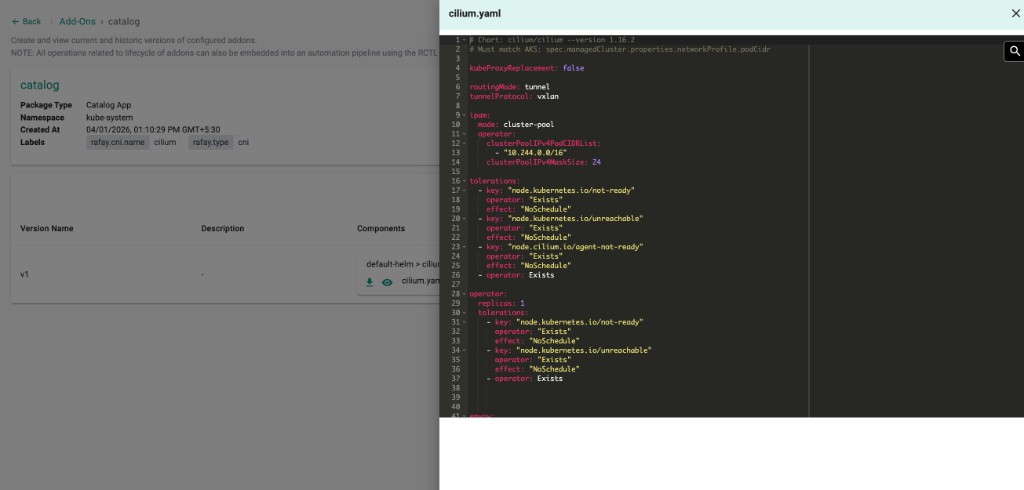

Catalog Cilium Add-On

The add-on will be created with the catalog-sourced Helm chart and values. Verify that the mandatory CNI labels (rafay.cni.name: cilium and rafay.type: cni) are present on the add-on.

Step 3: Create a Custom Blueprint

Create a custom blueprint and include the Cilium add-on created in the previous step (whether added manually or from the catalog).

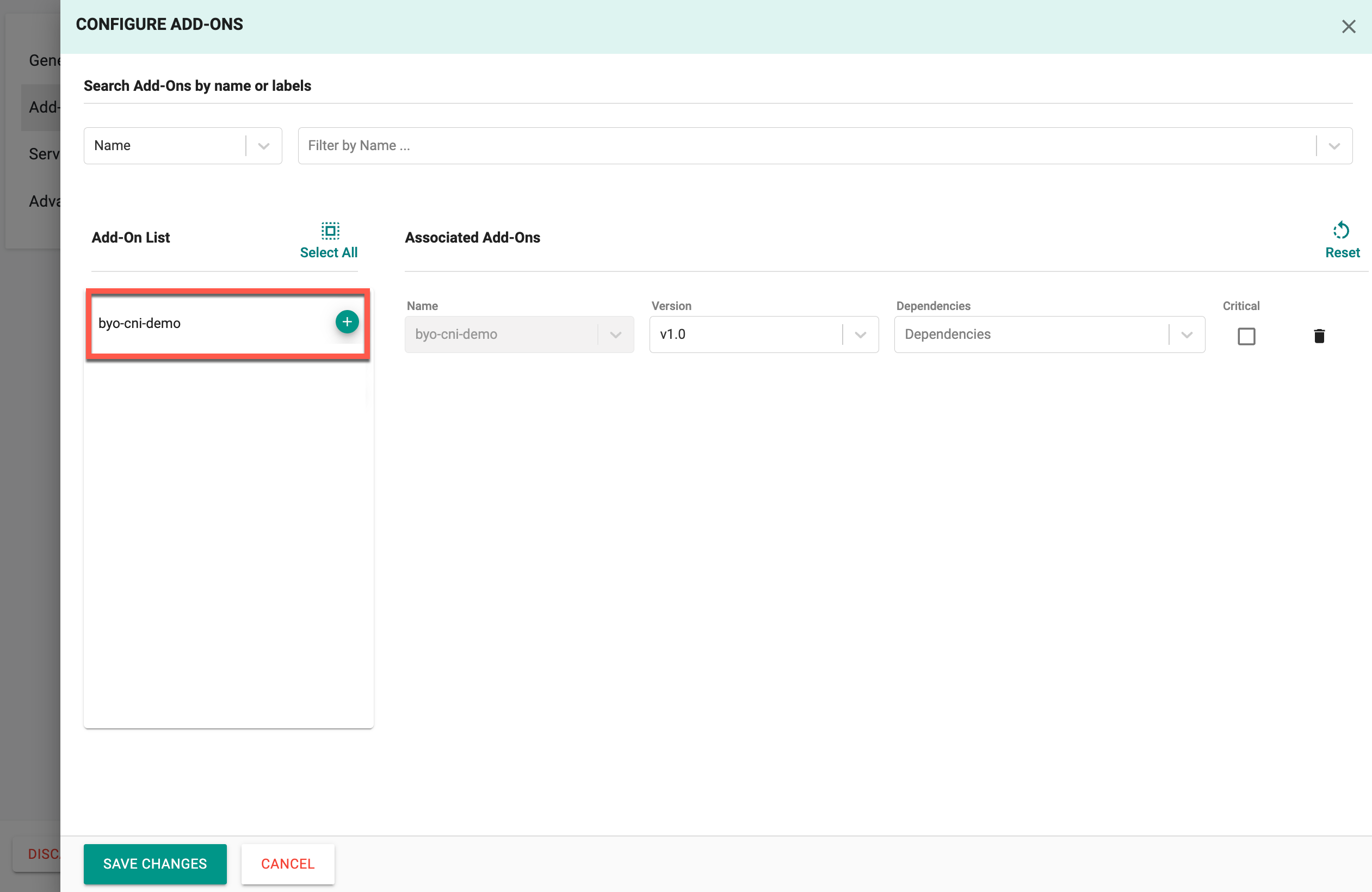

Custom Blueprint

Step 4: Provision the AKS Cluster

Create the AKS cluster using the cluster specification and ensure the following parameters are set:

  • the custom blueprint
  • networkPlugin: none
  • the same podCidr value used in the add-on values.yaml

The following example shows the AKS cluster specification and the highlighted parameters are the mandatory BYOCNI settings.

apiVersion: rafay.io/v1alpha1
kind: Cluster
metadata:
  name: shobhit-cni-pvt-proxy-310
  project: defaultproject
spec:
  blueprint: cilium-byo-cni
  blueprintversion: v1.2
  cloudprovider: shobhit-az-creds
  clusterConfig:
    apiVersion: rafay.io/v1alpha1
    kind: aksClusterConfig
    metadata:
      name: shobhit-cni-pvt-proxy-310
    spec:
      managedCluster:
        apiVersion: "2024-01-01"
        location: centralindia
        properties:
          kubernetesVersion: 1.32.9
          networkProfile:
            dnsServiceIP: 10.0.0.10
            loadBalancerSku: standard
            networkPlugin: none   # Mandatory for BYOCNI
            podCidr: 10.244.0.0/16   # Must match Cilium values.yaml
            serviceCidr: 10.0.0.0/16
        type: Microsoft.ContainerService/managedClusters
      resourceGroupName: shobhit-rg
  type: aks

Ensure the podCidr value exactly matches the clusterPoolIPv4PodCIDRList value in the values.yaml file:

operator:
  clusterPoolIPv4PodCIDRList:
    - "10.244.0.0/16"

Verify Cluster Readiness

After provisioning completes, verify that the nodes are in Ready state and the Cilium pods are deployed in the kube-system namespace by running kubectl get pods -A.

Day 2 CNI Configuration Updates

Day 0 and Day 2 operations for CNI configuration updates are supported for AKS clusters that are created using BYOCNI.

For clusters that are provisioned with BYOCNI during Day 0:

  • CNI configuration updates are supported during Day 2
  • Updates can be applied using supported workflows such as blueprint updates

Important limitation

Existing AKS clusters that were not originally created with BYOCNI cannot be converted later into BYOCNI-based clusters.

Only clusters provisioned with BYOCNI during Day 0 support subsequent Day 2 CNI configuration updates.
