Create
Resource templates are the building blocks of Environment templates and include Infrastructure as Code (IaC) that defines a resource, including variables, lifecycle hooks (pre/post actions upon completion, deployment, etc.), policies, whether the resource will be dedicated per workload or shared, and more.
Did you know ?
Resource Templates can be managed through various methods:
- UI
- CLI (RCTL)
- Terraform
- GitOps
- API
Create a Resource Template¶
- In a project, select Environments > Resource Templates.
- Select New Resource Template
- Type a name for the resource template. Optionally, type a description
- Select Create. The resource template is created and the configuration page displays

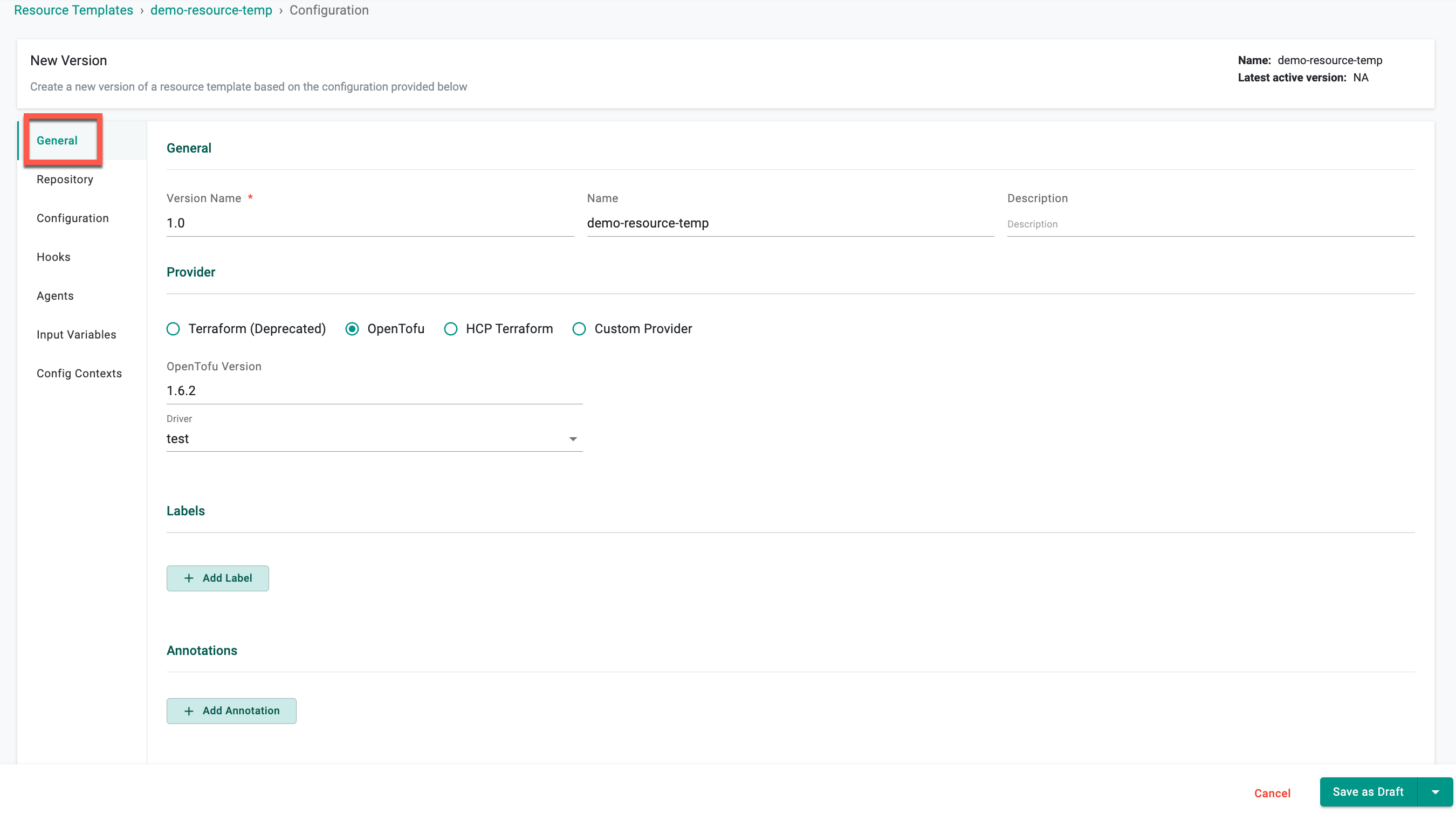

General¶
| Setting | Description |
|---|---|
| Version Name | Enter the version for the resource. Examples: v1, 0.1, 3 |
| Name | Enter a name for the resource |
| Description | Enter a description for the resource (Optional) |
| Provider | Select the provider for the resource. Supported values are "Terraform (Deprecated)", "OpenTofu", "HCP Terraform", "System", and "Custom". Refer to the Providers page for detailed instructions |
| Provider Version | Versions 1.6.2, 1.7.2 or latest for OpenTofu provider |
| Driver | Applicable for OpenTofu and HCP Terraform Provider only. Select the required Driver |
| Task | Applicable for Custom Provider only. Add tasks to define individual steps in a workflow, each executed based on specified drivers, agents and dependencies |
| Labels | Add a label to the resource. Use labels to specify identifying attributes of objects that are meaningful and relevant to users, but do not directly imply semantics to the core system. This is a key-value pair. For example, the key is environment and the value is dev |
| Annotations | Add an annotation to the resource. Use annotations to attach arbitrary non-identifying metadata to the resource. This is a key-value pair. For example, the key is imageregistry and the value is https://hub.docker.com/ |
Repository¶
| Setting | Description |
|---|---|
| Repository Name | Select the name for the repository |
| Branch | Enter the branch to use for the repository. Example: master |
| Directory Path | Enter the directory path for the configuration file in the repository |
Configuration¶
| Setting | Description |
|---|---|
| Refresh | Read the current settings from the resource and update if necessary |
| Lock Timeout | Lock a resource to prevent accidental modifications or deletion |
| State Store | State Store options differ based on the Provider selection in the General settings |
| Variables Management | Add var files to the resource |
| Plugin | Enter the plugin directory for the resource. This is optional. See Managing Plugins for more details |
| Volume | Configure volume settings VPC usage (mount path, storage class, and size in GB) and Backup & Restore (mount path). Users can enable the Backup & Restore during subsequent environment deployments. The volumes will be used in the deploy operation and their content will be restored. When destroying the environment, these volumes will be cleaned up |
Important
If a user does not specify a custom “state file store,” the system will default to using Rafay’s state file store. This default option is primarily intended for demos and Proofs of Concept (POCs). However, users should configure a custom state store if they require specific security measures, visibility, and other organizational requirements.
Hooks¶
A hook runs during a specified point when creating a resource from a template. Hooks can extend the functionality of creating a resource, like sending an HTTP request to a system.
Resource Hooks¶
Create a resource hook. See Hook Type for parameter details about each hook type.
| Setting | Description |
|---|---|
| On Completion | Set a hook that is triggered when resource creation or updating is complete. |
| On Failure | Set a hook that is triggered when resource creation or updating fails to complete. |
| On Init | Set a hook that is triggered when resource creation or updating is initialized. |
| On Success | Set a hook that is triggered when resource creation or updating is successful. |
Terraform Hooks¶
Create a Terraform hook. See Hook Type for parameter details about each hook type.
Deploy¶
Create a Terraform hook that is triggered when the resource is deployed.
| Setting | Description |
|---|---|
| Init | Deploy the resource when terraform init is used. |
| Plan | Deploy the resource when terraform plan is used. |
| Apply | Deploy the resource when terraform apply is used. |
| Output | Deploy the resource when an output is used. |
Destroy¶
Create a Terraform hook that is triggered when the resource is destroyed.
| Setting | Description |
|---|---|
| Init | Destroy the resource when terraform init is used. |
| Plan | Destroy the resource when terraform plan is used. |
| Destroy | Destroy the resource when terraform destroy is used. |
System Hooks¶
Create a System hook. See Hook Type for parameter details about each hook type.
Deploy¶
Create a System hook that is triggered when the resource is deployed
| Setting | Description |
|---|---|
| Apply | Deploy the resource when system apply is used. |
Destroy¶
Create a System hook that is triggered when the resource is destroyed.
| Setting | Description |
|---|---|
| Destroy | Destroy the resource when system destroy is used. |
Hook Type¶
When adding a Resource or Terraform hook, select a hook type and set the appropriate parameters.
Approval¶
| Setting | Description |
|---|---|
| Name | Enter a name for the hook. |
| Approval Type | Select the approval type. Supported values are: Internal and Email. |
| -- Internal | |
| Agent Name | Select the agent to associate with this hook. |
| Continue on Failure | Set the hook to run even if the resource creating or updating process fails. |
| Timeout | Enter a value to set the timeout duration. If the timeout duration is exceeded, the resource creation or updating is terminated. |
Container¶
| Setting | Description |
|---|---|
| Name | Enter a name for the container hook |
| Container Configuration | |
| -- cpuLimitMilli | Specify the CPU Limit to be used by the container |
| -- Image | Specify the underlying container image to be used |
| -- Memory Limit in MB | Specify the container memory limit to be set (in MB) |
| -- Working Directory Path | The working directory for commands to run in |
| -- Success Condition | Specify the success condition to be evaluated when a container completes execution |
| Arguments | Arguments to the entrypoint. The docker image's CMD is used if this is not provided |
| Commands | Entrypoint array. Not executed within a shell. The docker image's ENTRYPOINT is used if this is not provided |
| Environment Variables | Provide list of environment variables to set in the container |
| Agent Name | Name of the agent responsible for execution |
| Continue on Failure | Set the hook to continue execution even in case of failure |
| Timeout | Enter a value to set the timeout duration for container execution, if this exceeds container execution will be terminated |
HTTP¶
| Setting | Description |
|---|---|
| Name | Enter a name for the http hook |
| HTTP Configuration | |
| -- Body | Provide message body which is the data bytes transmitted during an HTTP transaction message |
| -- Endpoint | Specify the http endpoint which is a targetable URL to be invoked |
| -- Method | Specify the http method e.g. PUT, POST, GET that corresponds to the endpoint provided |
| -- Success Condition | Specify the success condition to be evaluated when a http call completes execution |
| Headers | Specify additional context and metadata about the request |
| Agent Name | Name of the agent responsible for execution |
| Continue on Failure | Set the hook to continue execution even in case of failure |
| Timeout | Enter a value to set the timeout duration for http call, if this exceeds execution will be terminated |
Driver¶
| Setting | Description |
|---|---|
| Name | Enter a name for the driver hook |
| Driver Configuration | |
| -- Type | Select the driver type. Supported values are: container, http |
| Agent Name | Name of the agent responsible for execution |
| Continue on Failure | Set the hook to continue execution even in case of failure |
| Timeout | Specify the duration in the Timeout field for HTTP or Container. When a user specifies a timeout in both Hooks and Drivers, the timeout specified in Hooks takes precedence |
Agents¶
| Parameter | Description |
|---|---|
| Name | Select an agent to associate with this resource |
Input Variables¶
OpenTofu and HCP Terraform Providers¶
- Click + Variable to add the required variable(s) to this resource template
Here are the variables that the user can configure for OpenTofu and HCP Terraform providers:
Selectors
| Setting | Description |
|---|---|
| Name | The name of the variable |
| Description | A brief description of the variable |
| Sensitive | Does not display the value in the UI |
| Required | The variable is required when using this Context |
| Override Type | Controls if a user can change a variable or not |
| -- Allowed | Allows the user to override the value |
| -- Not Allowed | Does not allow the user to override the value |
| -- Restricted | Allows the user to override the value by selecting a different, pre-defined value |
| Restricted Values | If Restricted is selected for the Override Type, enter the values that are allowed |
| Value Type | The type of value |
| -- HCL | Hashicorp configuration language |
| -- JSON | JavaScript Object Notation (JSON) is a lightweight data-interchange format |
| -- Expressions | Expressions are valid units of code that resolve to a value |
| -- Text | Text value |
| Default Value | The variable value |
| Selectors | Selectors enable the targeting and customization of specific resource variables within the resource template. By using selectors, users can alias resource variables and restrict the override scope, allowing them to override only specific resource variables |
Fetch Variables
The Fetch Variables feature allows automatic retrieval of variables defined in a Git repository linked to the resource template.
- Clicking on + Fetch Variables displays a screen that shows who triggered the Fetch Variables action, along with the status and a list of input variables. The initial status displayed is Evaluating Status.
- Once the input variables are fetched, select either Merge Input Variables or Replace Input Variables, depending on your requirements.
Contexts¶
| Setting | Description |
|---|---|
| Context | Select a Context to associate with this resource |
Upon furnishing the essential details, choose either Save as Active Version or Save as Draft Version
Version Management¶
Upon saving the configurations, users have the ability to review the list of resource templates with versions. To delve into specific version details, click on the corresponding version number.
There are three (3) distinct states for resource template versions:
- Draft
- Active
- Disabled
Users can create a draft version of resource templates and make multiple edits to it during the testing/validation phase. Once it is verified that the template is working as expected, users can transition the status from Draft to Active. However, it's important to note that no further edits can be made to the template in the active status. A new version has to be created for any edits to an Active version. Draft versions are project scoped which means that these versions are not shared with downstream projects (when the template is shared).
If a version of a template needs to be made unavailable for security related reasons or compliance, users can disable it by clicking on the Disable icon. Disabling effectively restricts further use of this version, meaning it can no longer be referenced in any new environments that are created. However, existing environments already using this version will remain unaffected.
Draft Status¶
In the draft status, the following rules apply:
- Inaccessible from shared projects
- Usable within the same project
- Editable multiple times
- Can be marked as active (accessible from shared projects)
- Can be marked as disabled and restored to an active state by enabling
Active Status¶
For versions in the active status:
- Cannot be reverted back to draft from any other state
- Accessible from shared projects
- No further changes allowed
- Can be marked as disabled and restored to an active state by enabling
Disabled Status¶
Versions in the disabled status adhere to the following rules:
- Cannot be used in the future; no impact on existing projects
- Can be restored to an active state by enabling
Important
- Use the delete icon to remove a version if it is not currently in use. Versions cannot be deleted if they are in use
- GitOps and Terraform do not support version management; they will always synchronize with the latest active version
