Virtual Machines
Create a Compute Profile for Virtual Machine¶
This section outlines the process for creating a Compute Profile using the Virtual Machine compute type. Virtual machine profiles enable flexible provisioning of isolated environments within shared physical infrastructure.
Refer to the Compute Profile Overview for general information.

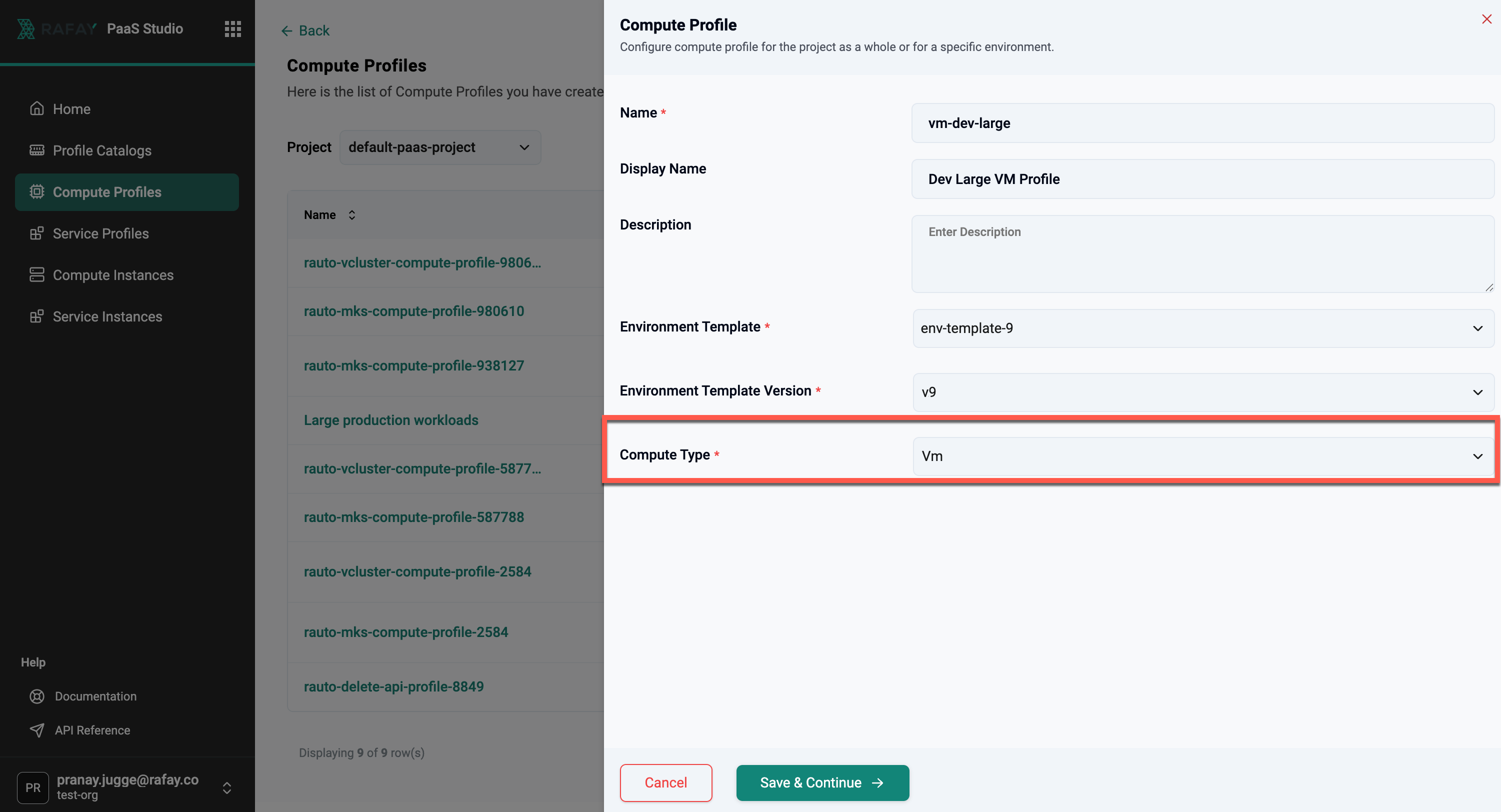

Steps to Create a Virtual Machine Compute Profile¶
- In the Developer Console, navigate to Compute Profiles from the left navigation pane.
- Click the + New Compute Profile button.
- In the Compute Profile form:
- Name: Provide a unique identifier for the profile (e.g.,
vm-dev-large) - Display Name (Optional): Enter a user-friendly label (e.g.,
Dev Large VM Profile) - Description (Optional): Add notes to describe the profile’s purpose or resource configuration
- Choose the appropriate Environment Template from the dropdown (e.g.,
env-template-9) - Choose the Template Version (e.g.,
v9) - Compute Type: From the dropdown, select Virtual Machine
- Name: Provide a unique identifier for the profile (e.g.,
⚠️ This determines that workloads associated with this profile will be provisioned on virtualized infrastructure (VMs).
- Once all required fields are filled, click Save & Continue to proceed to configuration.
Compute Profile Configuration¶
Once saved, the Compute Profile Configuration page appears.

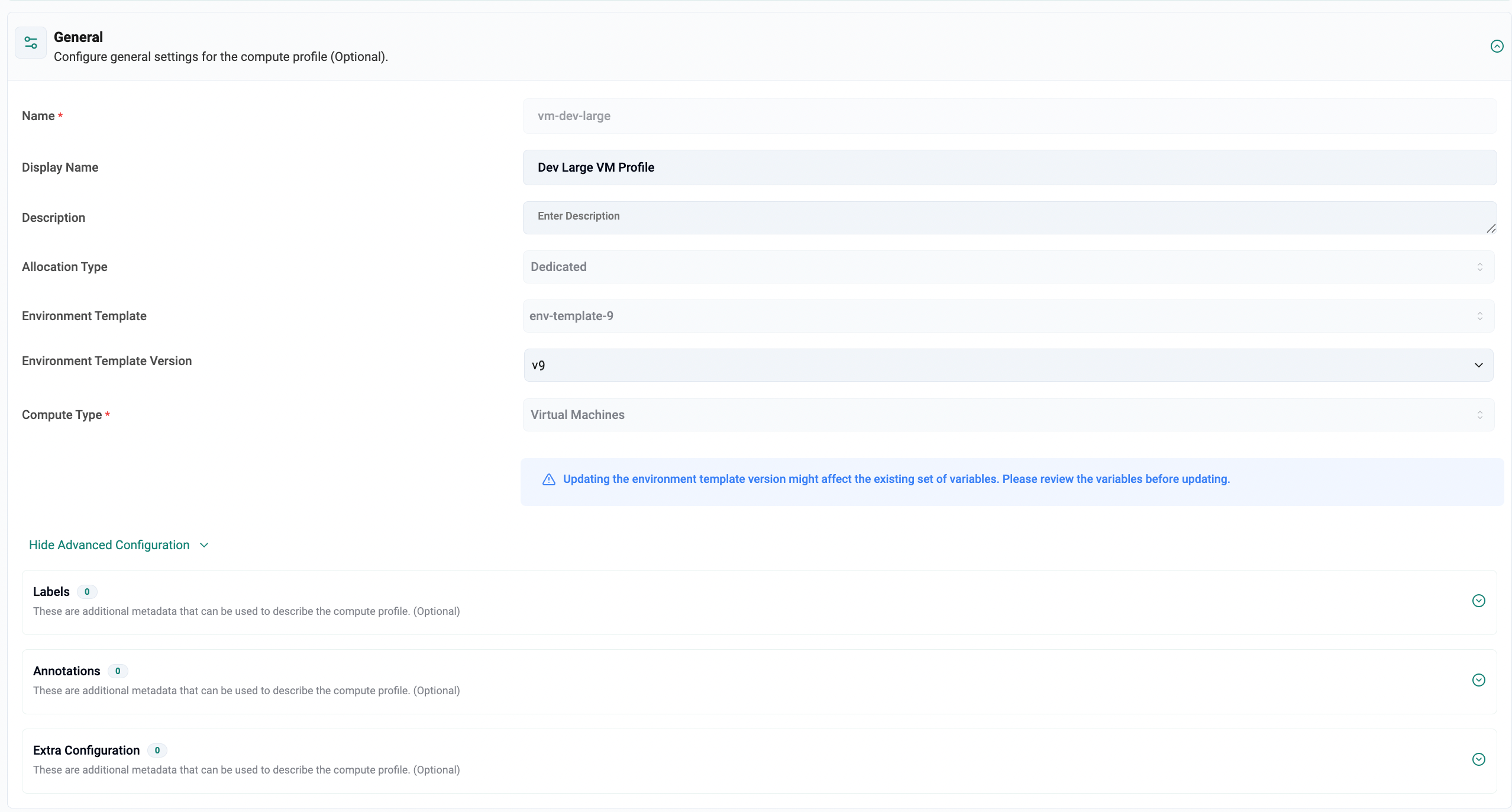

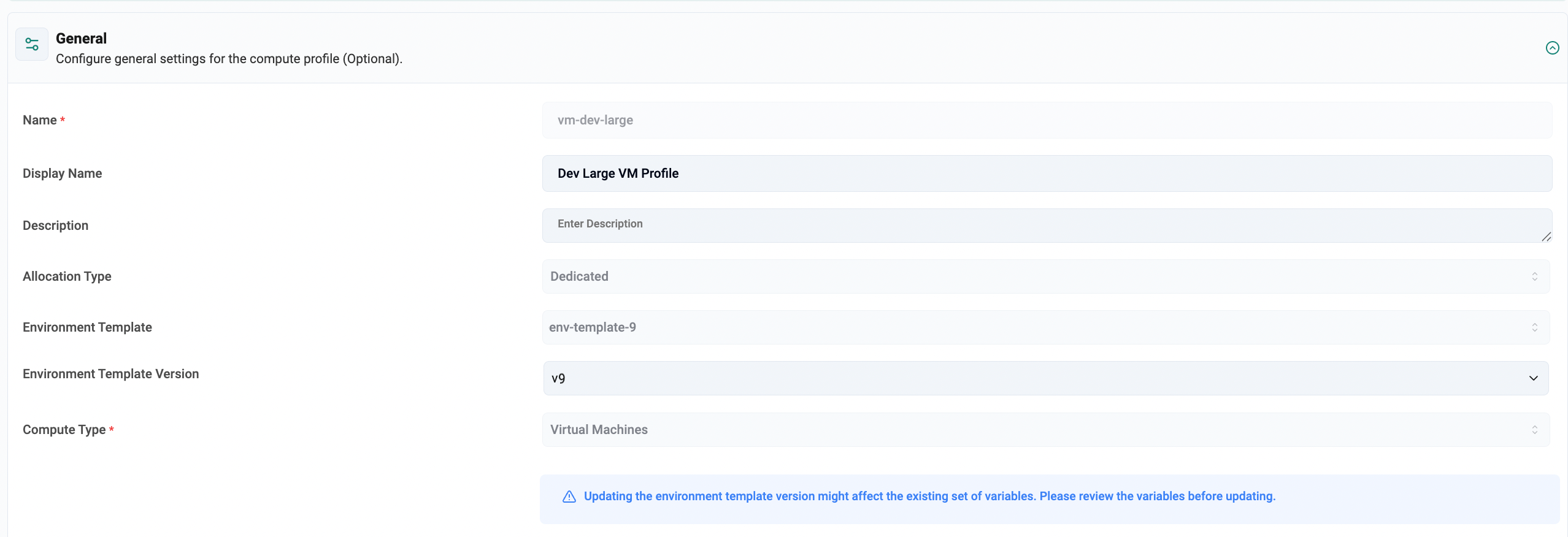

General¶
| Name | Default Value | Value Type | Description |
|---|---|---|---|
| Name | vm-dev-large |
string | Internal identifier for the compute profile |
| Display Name | Dev Large VM Profile |
string | User-friendly label for UI display |
| Description | Enter Description | string | Notes describing the profile purpose or usage |
| Allocation Type | Dedicated |
string | Indicates whether the infrastructure is dedicated or shared |
| Environment Template | env-template-9 |
string | Template associated with the compute profile |
| Environment Template Version | v9 |
string | Version of the selected environment template |
| Compute Type | Virtual Machines |
string | Type of infrastructure provisioned by the profile |

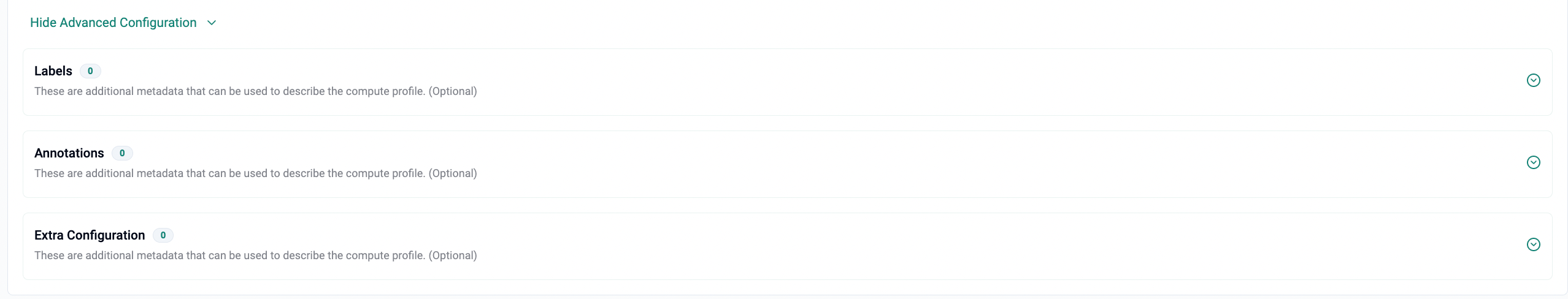

Advanced Configuration¶
| Name | Default Value | Value Type | Description |
|---|---|---|---|
| Labels | N/A | key-value | Optional metadata to help categorize and identify the compute profile |
| Annotations | N/A | key-value | Optional key-value pairs for additional context (e.g., 'env': 'dev') |
| Extra Configuration | N/A | key-value | Custom key-value metadata for advanced customization or integration |

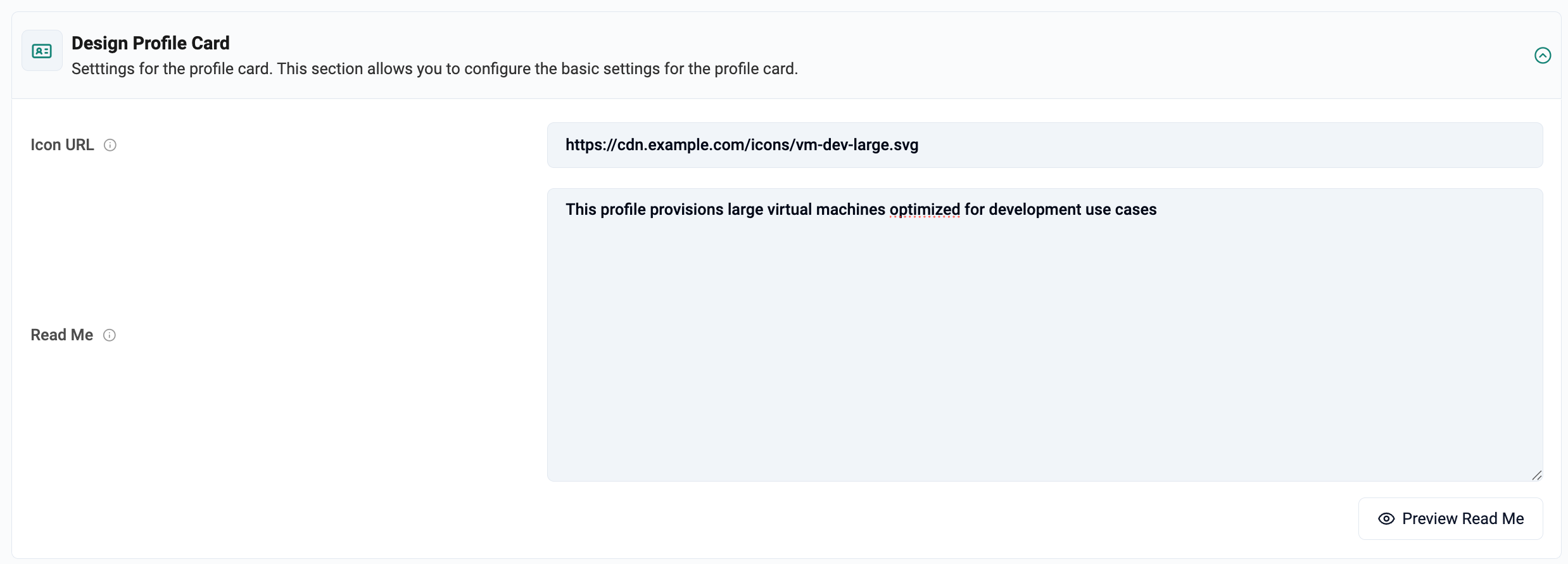

Display Settings¶
| Name | Default Value | Value Type | Description |
|---|---|---|---|
| Icon URL | https://cdn.example.com/icons/vm-dev-large.svg |
string | URL to a custom icon used to visually identify the compute profile |
| Read Me | This profile provisions large virtual machines optimized for development use cases. |
string | Short summary describing the purpose or characteristics of the profile |

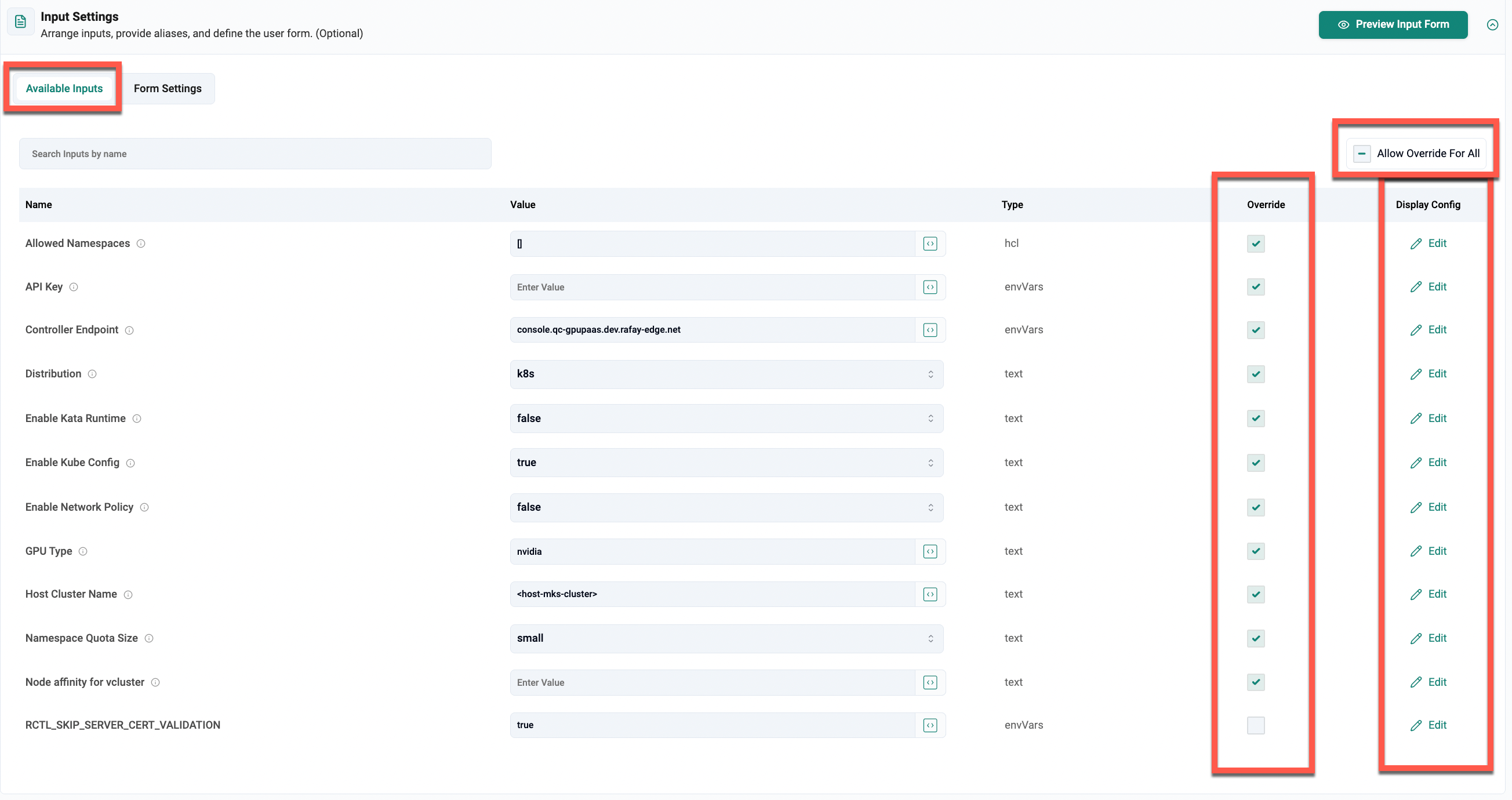

Input Settings Table¶
| Name | Sample Value | Value Type | Description |
|---|---|---|---|
| Allowed Namespaces | [] |
hcl | List of namespaces permitted for the configuration |
| API Key | rafay-api-key-789xyz |
envVars | API key used for authenticating with the controller |
| Controller Endpoint | console.qc-gpupaas.dev.rafay-edge.net |
envVars | Endpoint URL of the controller |
| Distribution | k8s |
text | Kubernetes distribution in use |
| Enable Kata Runtime | false |
text | Whether Kata containers runtime is enabled (true/false) |
| Enable Kube Config | true |
text | Enable download or use of kubeconfig for the cluster (true/false) |
| Enable Network Policy | false |
text | Indicates if Kubernetes network policies are enabled (true/false) |
| GPU Type | nvidia |
text | Specifies the GPU type to be provisioned (e.g., nvidia) |
| Host Cluster Name | <host-mks-cluster> |
text | Name of the hosting cluster |
| Namespace Quota Size | small |
text | Specifies the namespace quota size (e.g., small, medium, large) |
| Node affinity for vcluster | zone=us-west-2a |
text | Node affinity rules applied to vcluster nodes |
| RCTL_SKIP_SERVER_CERT_VALIDATION | true |
envVars | Whether to skip TLS certificate validation when using RCTL |
Input Configuration Controls¶
-
Override (Checkbox): Allows environment-level overrides for specific input parameters. When enabled, users can modify the input value directly within their environment-specific configurations.
-
Allow Override For All: A global control that enables the override option for all listed inputs at once. Useful for quickly granting flexibility across the entire configuration.
-
Preview Input Form: Displays a preview of how the configured inputs will appear to users. It includes field labels, tooltips, input types, validation rules, and grouping settings.
-
Display Config (Edit): Opens a configuration panel where display-related settings can be customized. Options include changing the display name, adding user guidance tooltips, setting default values, selecting input types, and organizing fields into logical groups.

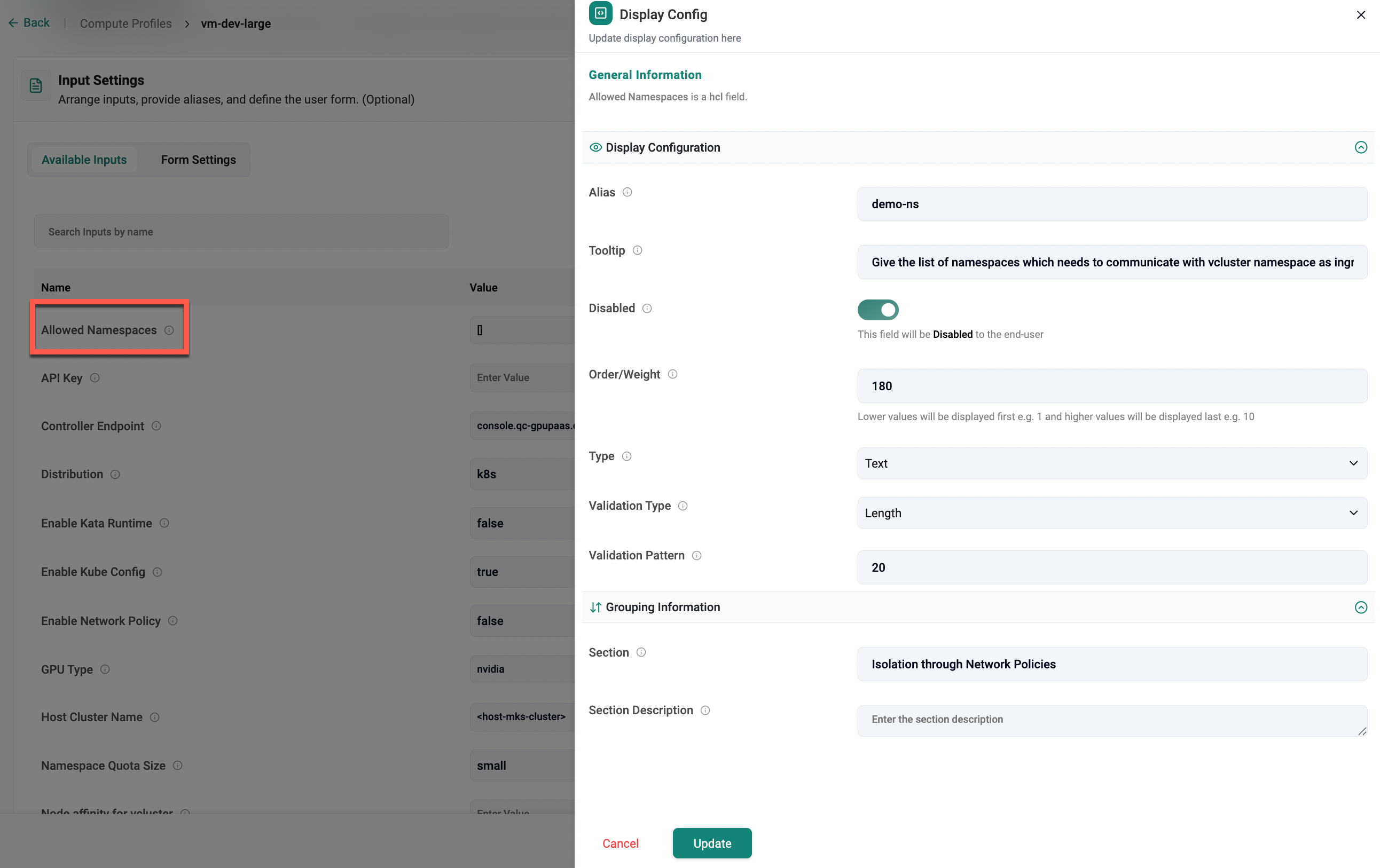

Example: Edited Input for Allowed Namespaces
| Field | Description |
|---|---|
| Alias | Display label shown to users (e.g., demo-ns) |
| Tooltip | Help text shown when hovering over the info icon (e.g., Give the list of namespaces which needs to communicate with vcluster namespace as ingress) |
| Disabled | Toggle to make the field read-only for end users |
| Order/Weight | Determines the order of fields in the UI (e.g., 180, higher values appear lower in the form) |
| Type | Input type for the field (e.g., Text, File Upload, Dropdown) |
| Validation Type | Defines the validation mechanism (e.g., Length, Regex, Required) |
| Validation Pattern | Used along with validation type; in this case, sets a max length of 20 characters |
| Section | Logical grouping under which the field will be displayed (e.g., Isolation through Network Policies) |
| Section Description | Optional description for the section |

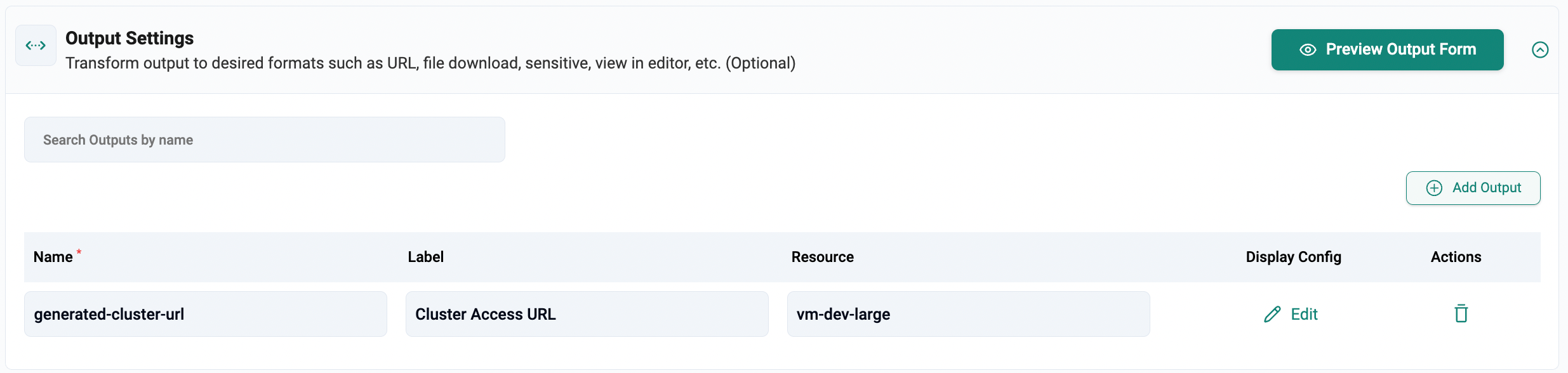

Output Settings¶
| Name | Sample Value | Value Type | Description |
|---|---|---|---|
| Name | generated-cluster-url |
text | Unique identifier for the output configuration. This is a required field |
| Label | Cluster Access URL |
text | Display name shown in the UI for better readability (optional) |
| Resource | vm-dev-large |
text | Optional reference to a resource name that this output is associated with |
- Each output entry includes Edit and Delete options on the right side, allowing modifications or removal of the configuration as needed
- The Preview Output Form button allows visual verification of how the output fields will be rendered in the UI
Once all configurations are complete, click Save Changes to apply the updates.
