Fleet Environment Template

This guide walks you through the prerequisites and step-by-step configuration of a Fleet Environment Template to perform bulk updates across multiple environments using the Template Catalog.

---

Prerequisites

Before starting, ensure the following are available:

• API Key
  Must belong to a user with sufficient RBAC permissions to modify environments across the targeted projects or organization.

• Controller Endpoint
  Typically console.rafay.dev. This targets the correct Rafay Controller environment.

• Access to the Template Catalog
  Ensure the Fleet Environment Template is available within your system template catalog and that you have permission to use it.

---

Use Case Overview

The Fleet Template enables centralized, bulk configuration updates across environments based on: - Project filters - Environment labels - Template name and version - Input variable changes

This is ideal for day-2 operations such as: - Kubernetes version upgrades - Blueprint updates - AMI updates

---

Step-by-Step Configuration Guide

Follow the steps below to use the Fleet Environment Template effectively.

Step 1: Access and Share the Template

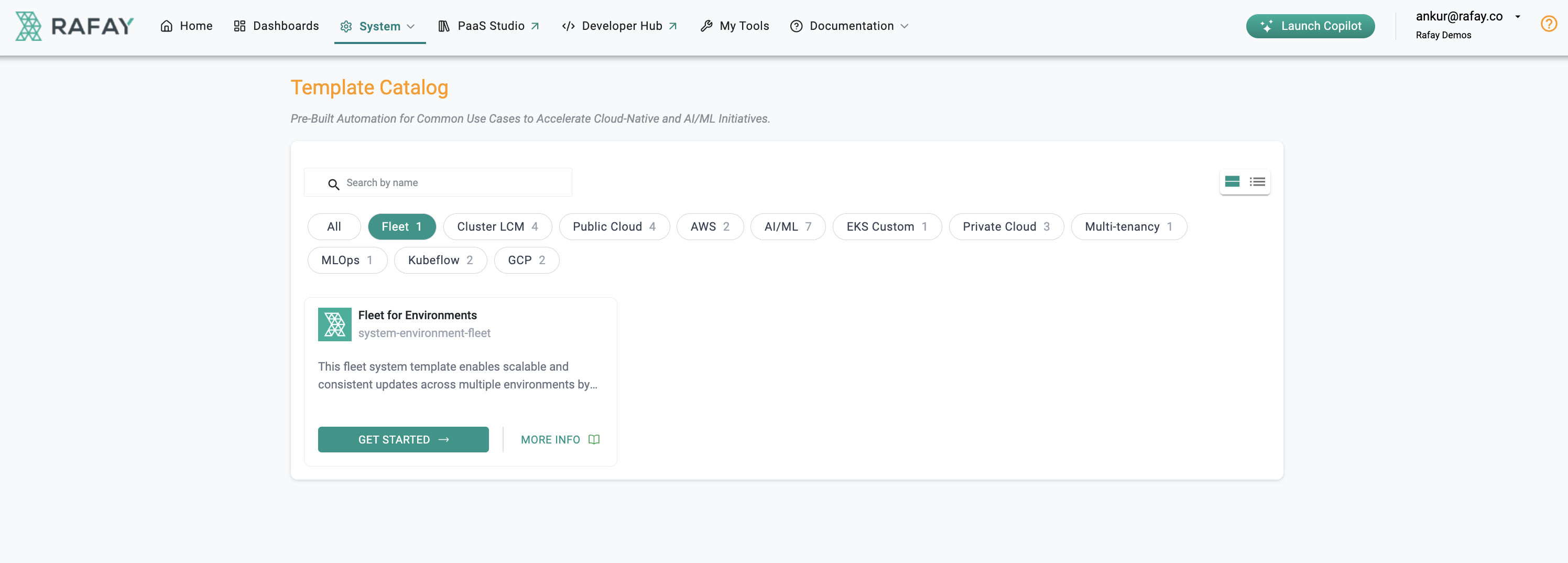

1. Navigate to the Template Catalog in the Rafay Console.
2. Locate and select the Fleet Environment Template.
3. Share the template with a central project where your environments are managed.
4. From that central project, launch the Fleet template to begin configuration.

---

Step 2: Identify Target Environments

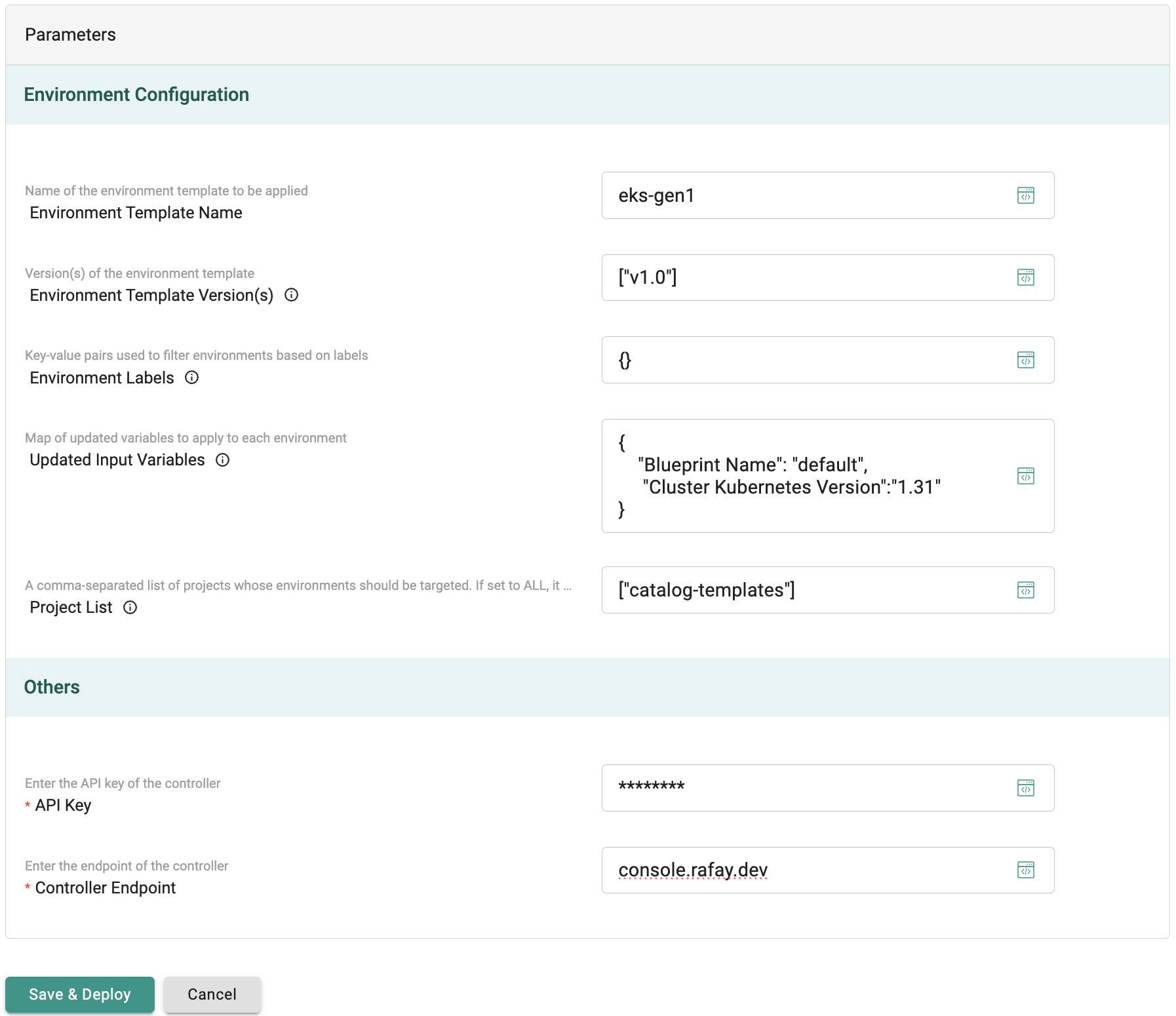

Use filters to define which environments should be targeted. These filters help narrow down the environments that will be impacted by the update.

Filter Input Variables

Name	Default Value	Description
Project List	["ALL"]	A list of projects whose environments should be targeted. If set to ALL, it includes environments from all projects
Environment Template Name	(Required)	Name of the environment template to be applied
Environment Template Version(s)	[]	Specific version(s) of the environment template to target
Environment Labels	{ "environment-label-key": "environment-label-value" }	Key-value pairs used to filter environments based on assigned labels

---

Step 3: Define Updated Input Variables

Specify the key-value map of variables that should be updated in the matched environments.

Updated Input Variables

Name	Default Value	Description
Updated Input Variables	{ "key": "value" }	Map of updated variables to apply to each environment

These variables must already exist and be defined as mutable in the environment template.

Example:

{
  "Blueprint Name": "default",
  "Cluster Kubernetes Version": "1.31"
}

Step 4: Set Required Environment Variables

Set the global variables required for authentication and targeting the correct controller.

Environment Variables

Name	Required	Default	Description
API Key	Yes	—	API key for authentication
Controller Endpoint	Yes Populated By Default	console.rafay.dev	The target Rafay Controller URL

---

Step 5: Save and Deploy the Fleet Template

After completing the input fields:

1. Review all configured values including filters, updated variables, and environment variables.
2. Click Save and Deploy to initiate the fleet update.
3. The system will:
4. Filter and evaluate matching environments
5. Apply the input variable updates in bulk
6. Display success or error status per environment in the results

---

Conclusion

The Fleet Environment Template provides a scalable, centralized way to update environment configurations across projects—ideal for Day-2 operations such as Kubernetes version upgrades, blueprint updates, and AMI rollouts.

By launching the template from a shared central project, platform teams ensure consistency, reduce operational overhead, and eliminate manual effort.

---
