Setup

In this exercise, you will provision an Kafka Helm chart and test the autoscaling of Kafka with KEDA.

Important

This tutorial describes the steps using the Rafay Web Console. The entire workflow can also be fully automated and embedded into an automation pipeline

Watch a video of the steps below

Assumptions¶

You have already provisioned or imported a Kubernetes cluster into your Rafay Org and created a blueprint with KEDA

Step 1: Create Namespace¶

Login into the Web Console
Navigate to Infrastructure -> Namespaces
Create a new namespace, specify the name (e.g. kafka) and select type as Wizard
In the placement section, select a cluster
Click Save & Go to Publish
Publish the namespace

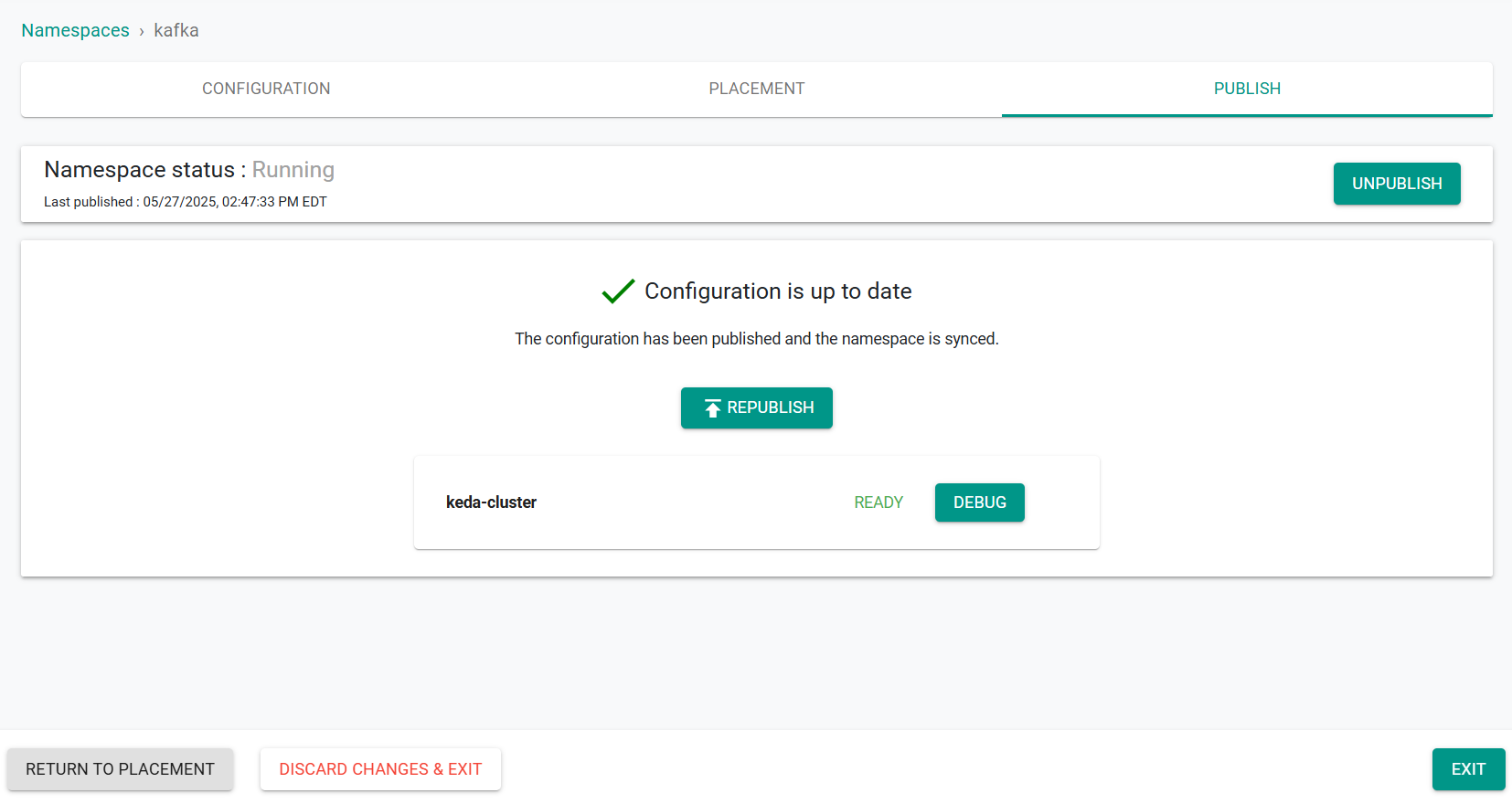

Create namespace

Step 2: Create Kafka Add-on¶

Navigate to Infrastructure -> Add-Ons
Select New Add-On -> Create New Add-On from Catalog

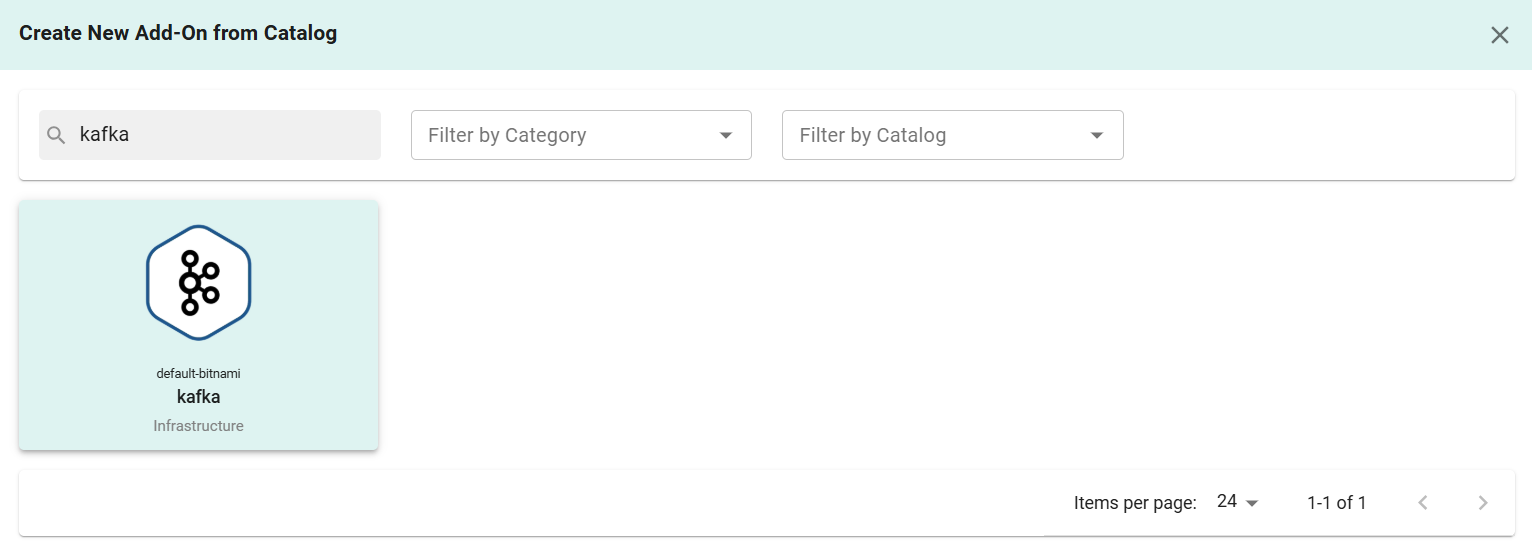

Search for kafka
Select kafka from default-bitnami

Catalog

Select Create Add-On

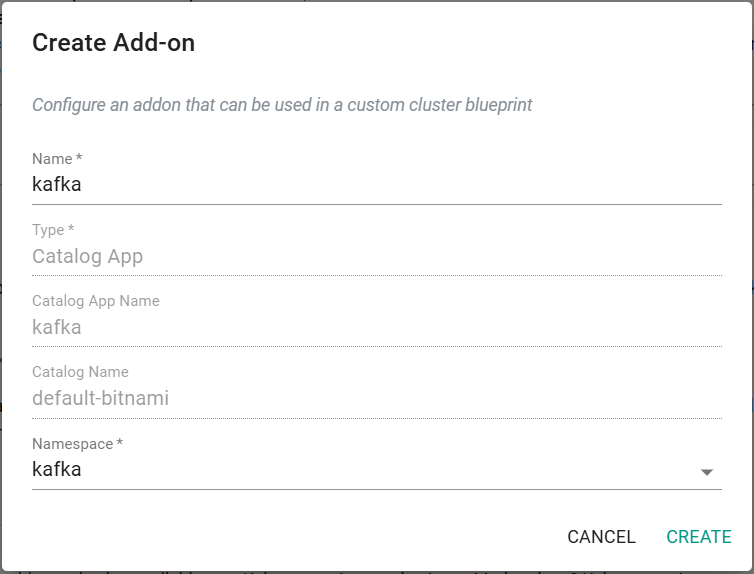

Enter a name for the add-on
Specify the namespace (e.g. kafka and select the namespace created as part of the previous step

Addon create

Click Create

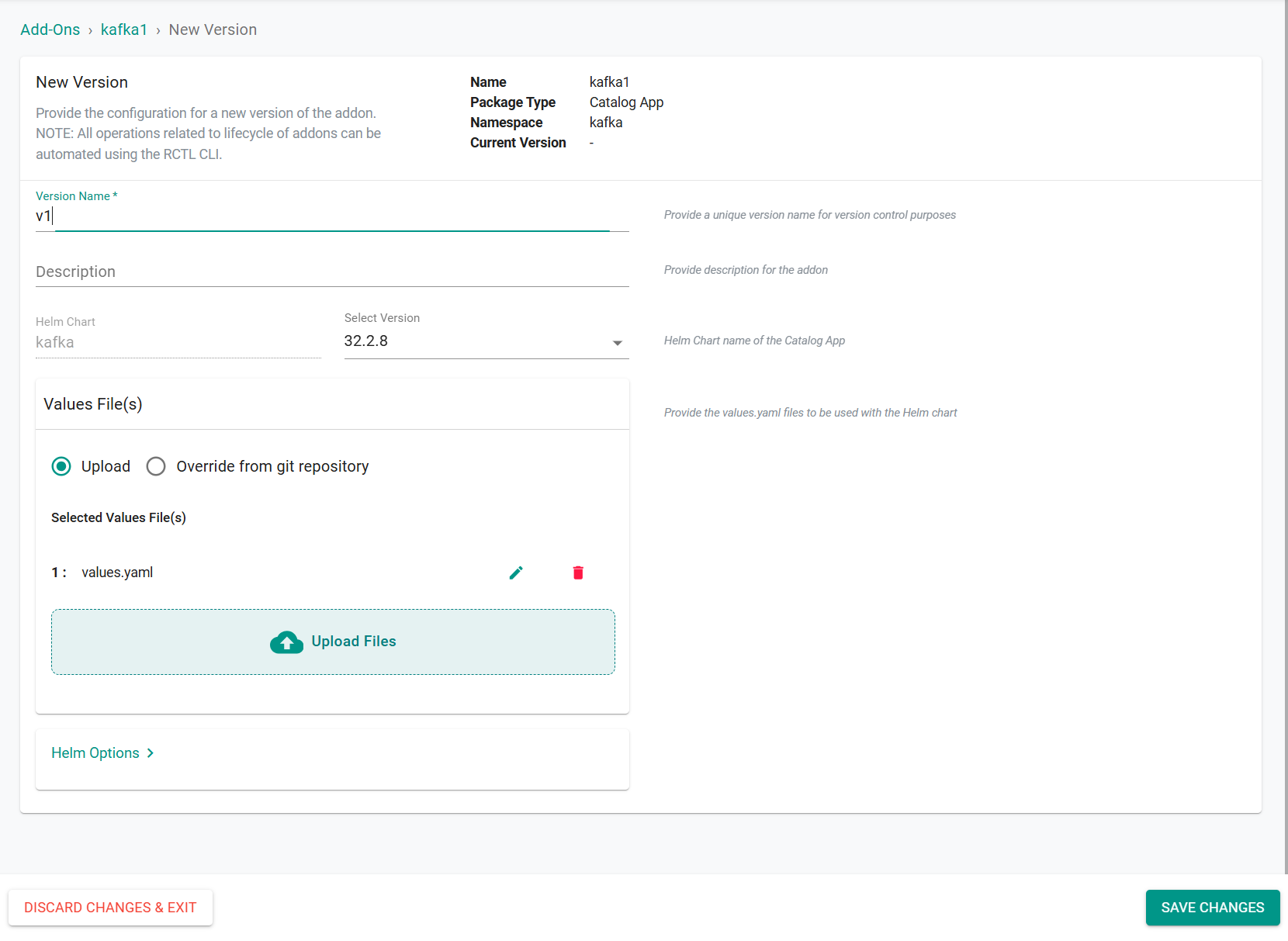

Enter a version name
Upload the following helm values

persistence:
  enabled: false
listeners:
  client:
    containerPort: 9092
    protocol: PLAINTEXT
    name: CLIENT
    sslClientAuth: ""

Click Save Changes

keda create

Step 3: Update Blueprint¶

Navigate to Infrastructure -> Blueprints

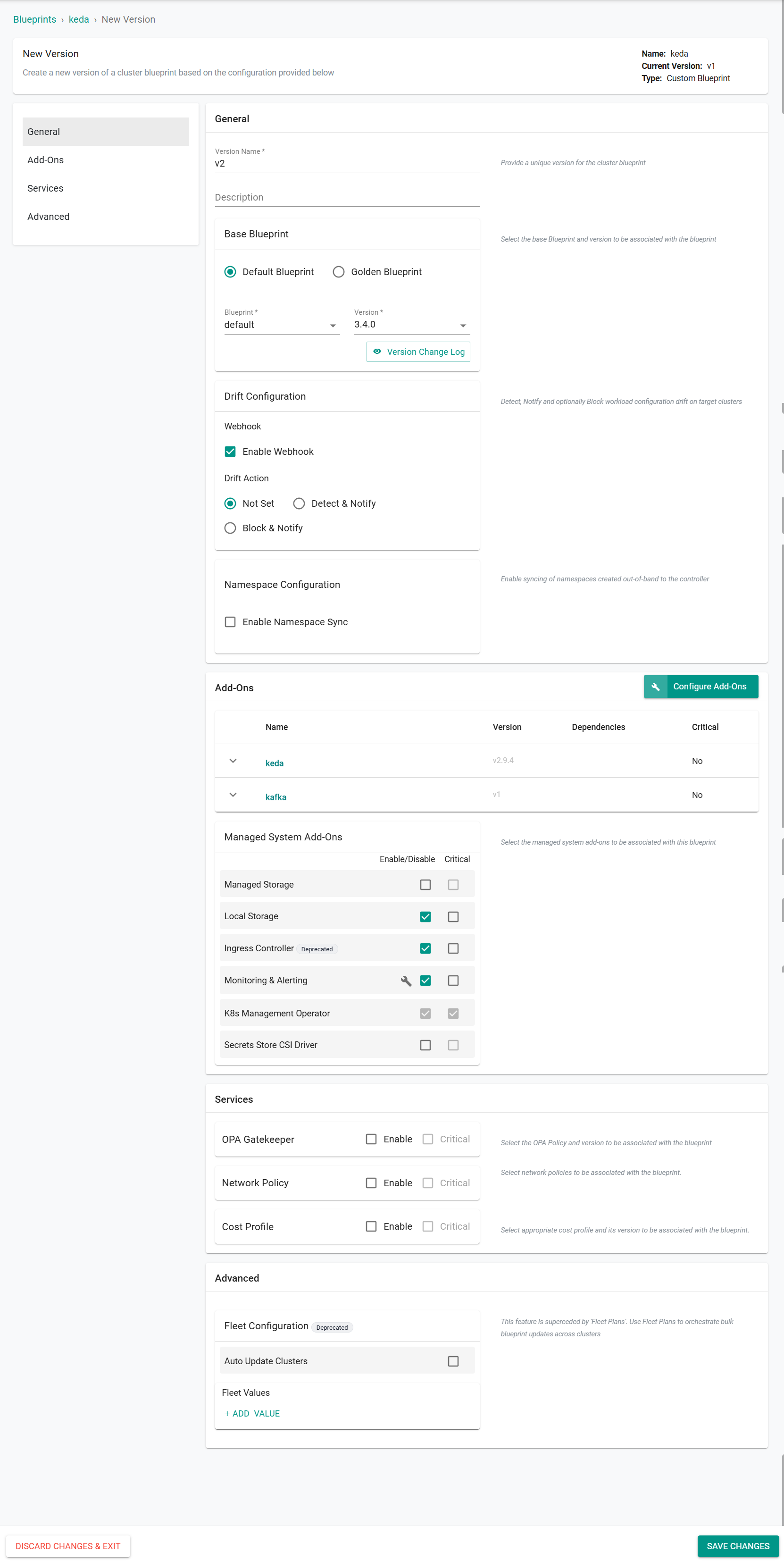

Edit the previously created KEDA blueprint
Enter a version name

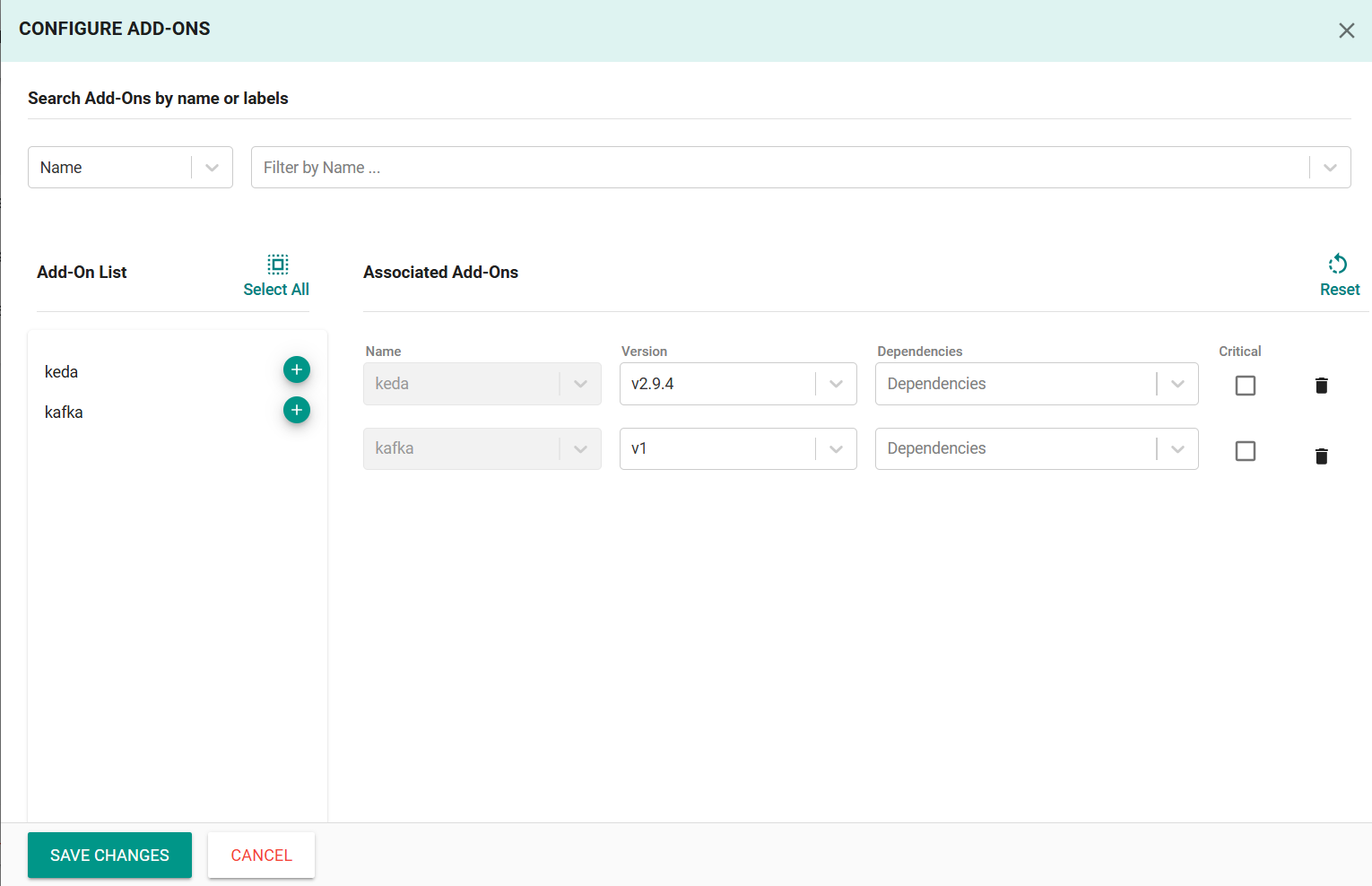

Click Configure Add-Ons
Select the previously created Kafka add-on
Click Save Changes

Blueprint

Click Save Changes

Blueprint

Step 4: Apply Blueprint¶

Navigate to Infrastructure -> Clusters

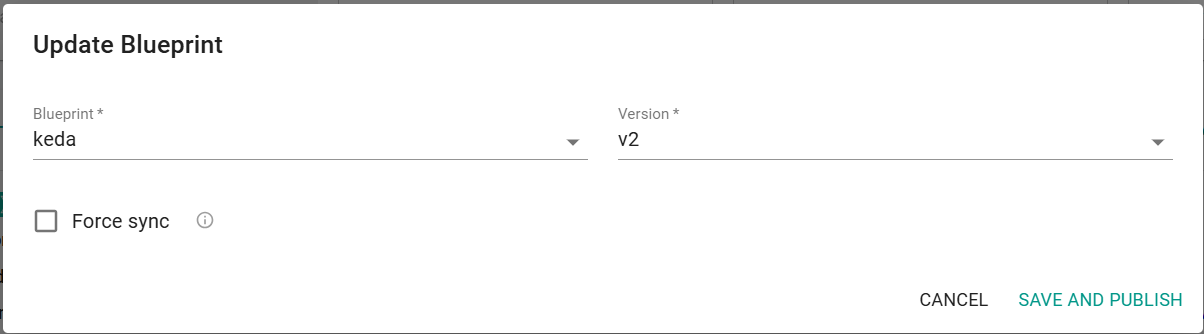

Click the gear icon on your cluster and select Update Blueprint
Select the previously updated blueprint
Click Save and Publish

Blueprint

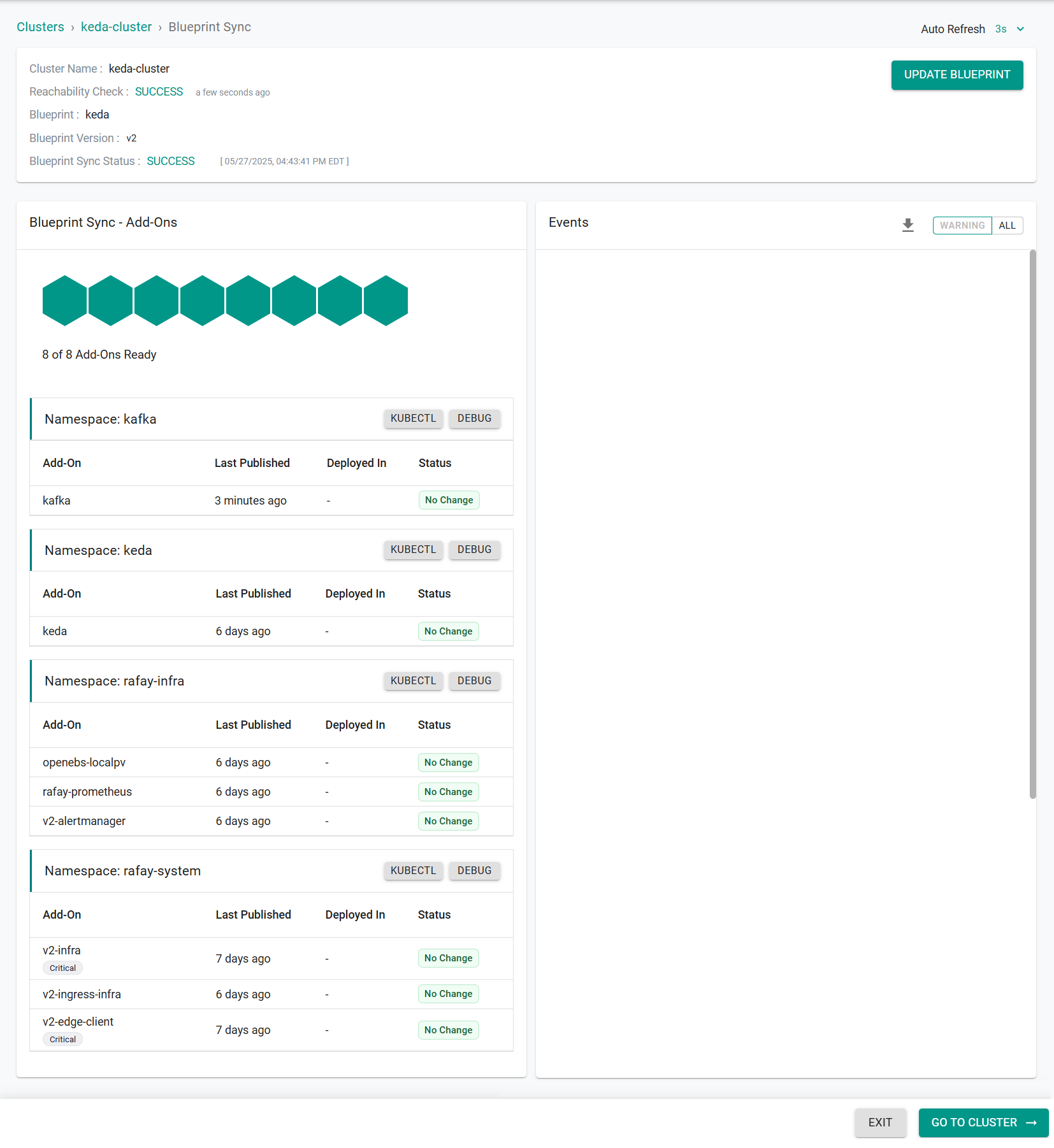

After a few seconds, the blueprint with the KEDA and Kafka add-ons will be published on the cluster.

Blueprint

Step 5: Verify deployment¶

Navigate to Infrastructure -> Clusters
Click KUBECTL on your cluster
Type the following command

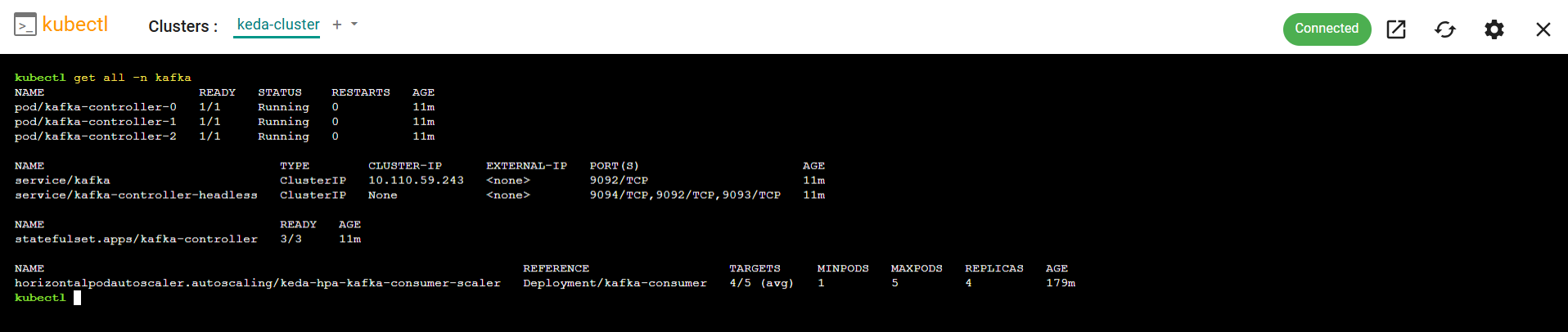

kubectl get all -n kafka

Kafka

Step 6: Test Scaling¶

Create Kafka Consumer¶

Create a file named consumer.yaml with the following contents

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kafka-consumer
  namespace: kafka
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kafka-consumer
  template:
    metadata:
      labels:
        app: kafka-consumer
    spec:
      containers:
        - name: consumer
          image: edenhill/kcat:1.7.1
          command: ["/bin/sh", "-c"]
          args:
            - kcat -C -b kafka.kafka.svc.cluster.local:9092 -G my-consumer-group test-topic

Type the following command to create the resource

kubectl apply -f consumer.yaml

Type the following command to validate the resource was created
```
kubectl get deployments -n kafka
``

You will see output similar to the following:
```
NAME READY UP-TO-DATE AVAILABLE AGE kafka-consumer 0/0 0 0 9m19s

Create Kafka ScaledObject¶

Create a file named scaledobject.yaml with the following contents

apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: kafka-consumer-scaler
  namespace: kafka
spec:
  scaleTargetRef:
    name: kafka-consumer
  minReplicaCount: 0
  maxReplicaCount: 5
  triggers:
    - type: kafka
      metadata:
        bootstrapServers: kafka-controller-headless.kafka.svc.cluster.local:9092
        topic: test-topic
        consumerGroup: my-consumer-group
        lagThreshold: "5"
        offsetResetPolicy: latest

Type the following command to create the CRD

kubectl apply -f scaledobject.yaml

Type the following command to validate the resource was created
```
kubectl get scaledobjects -n kafka
```
You will see output similar to the following:

NAME                    SCALETARGETKIND      SCALETARGETNAME   MIN   MAX   TRIGGERS   AUTHENTICATION   READY   ACTIVE   FALLBACK   AGE
kafka-consumer-scaler   apps/v1.Deployment   kafka-consumer    0     5     kafka                       True    False    Unknown    4s

Create Kafka Producer¶

Create a file named producer.yaml with the following contents

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kafka-producer
  namespace: kafka
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kafka-producer
  template:
    metadata:
      labels:
        app: kafka-producer
    spec:
      containers:
        - name: producer
          image: edenhill/kcat:1.7.1
          command: ["/bin/sh", "-c"]
          args:
            - while true; do echo "test-message" | kcat -P -b kafka.kafka.svc.cluster.local:9092 -t test-topic; sleep 2; done

Type the following command to create the CRD

kubectl apply -f producer.yaml

Type the following command to validate the resource was created
```
kubectl get deployments -n kafka
```
You will see output similar to the following showing both the producer and the scaled consumer.

NAME             READY   UP-TO-DATE   AVAILABLE   AGE
kafka-consumer   1/1     1            1           13m
kafka-producer   1/1     1            1           22s

The number of replicas for the producer can be scaled, this will increase the lag and cause KEDA to scale the consumer pods to keep up with the producers.
