Switches

The Switches section under Inventory allows cloud partners to register and manage all physical network switches used in their infrastructure. These switches form the backbone of data center connectivity—enabling provisioning, tenant isolation, and routing of compute traffic.

Cloud partners must onboard each switch into the system so that it can be identified and used during automated provisioning workflows. Each switch is assigned a role, and network details like loopback IP, management IP, and BGP ASN.

---

Why use the Switches section?

• Centralized visibility into all network switches used in the infrastructure
• Associate switch roles to define provisioning and traffic routing paths
• Enable automated tenant isolation through role-aware network mapping
• Support BGP-based routing and IP-level management of hardware

---

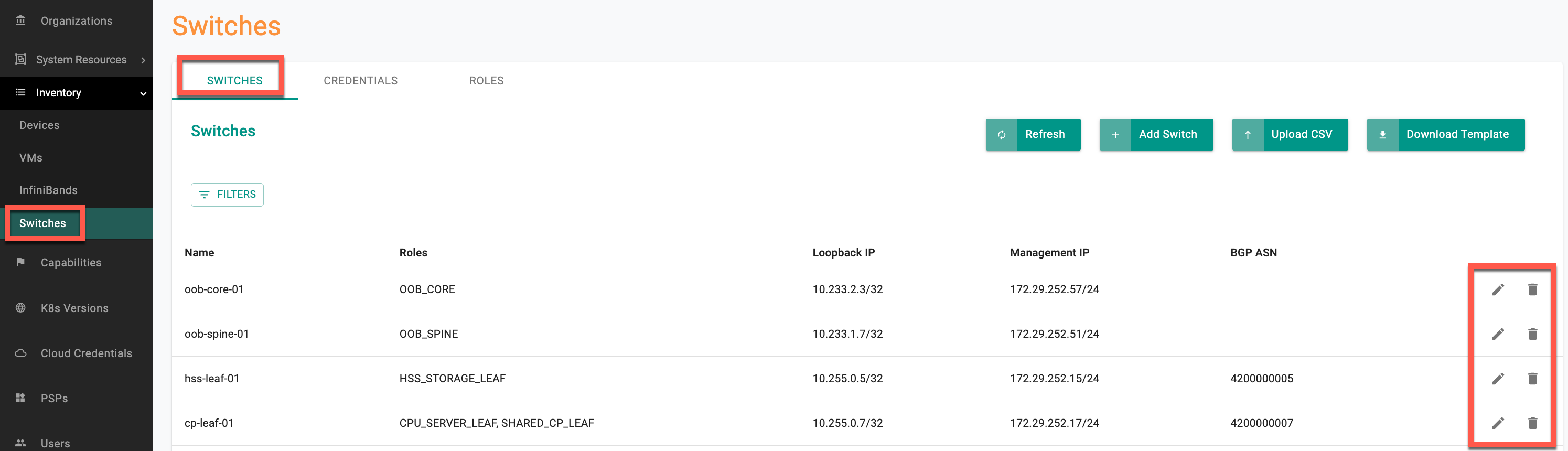

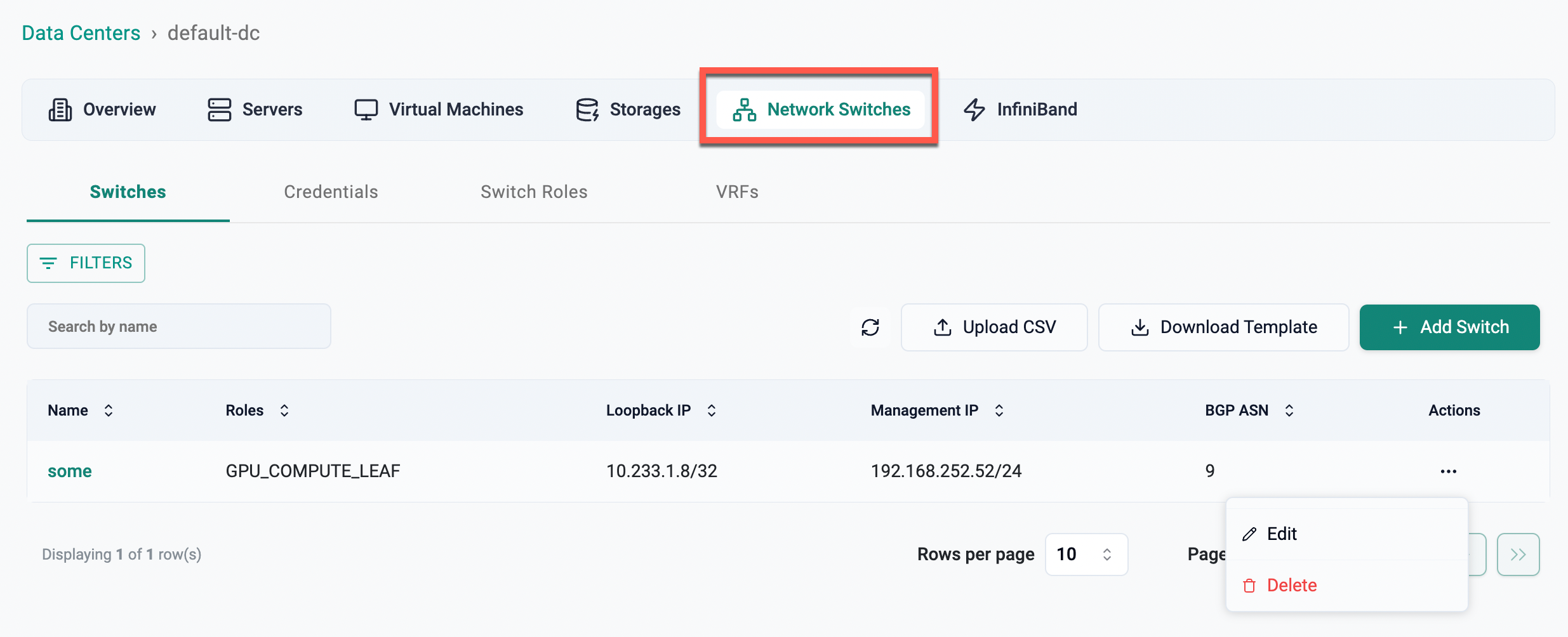

Manage Switches

The Switches tab provides a view of all switches currently onboarded. It includes basic metadata such as:

Field	Description	Example
Name	Identifier for the switch	oob-core-01
Roles	Function assigned to the switch (can be multiple)	OOB_CORE, GPU_COMPUTE_LEAF
Loopback IP	IP used for internal routing and diagnostics	10.233.2.3/32
Management IP	IP used for out-of-band management access	172.29.252.57/24
BGP ASN	Autonomous system number used for routing	4200000005

Admins can edit or delete existing switches using the icons in the rightmost column.

---

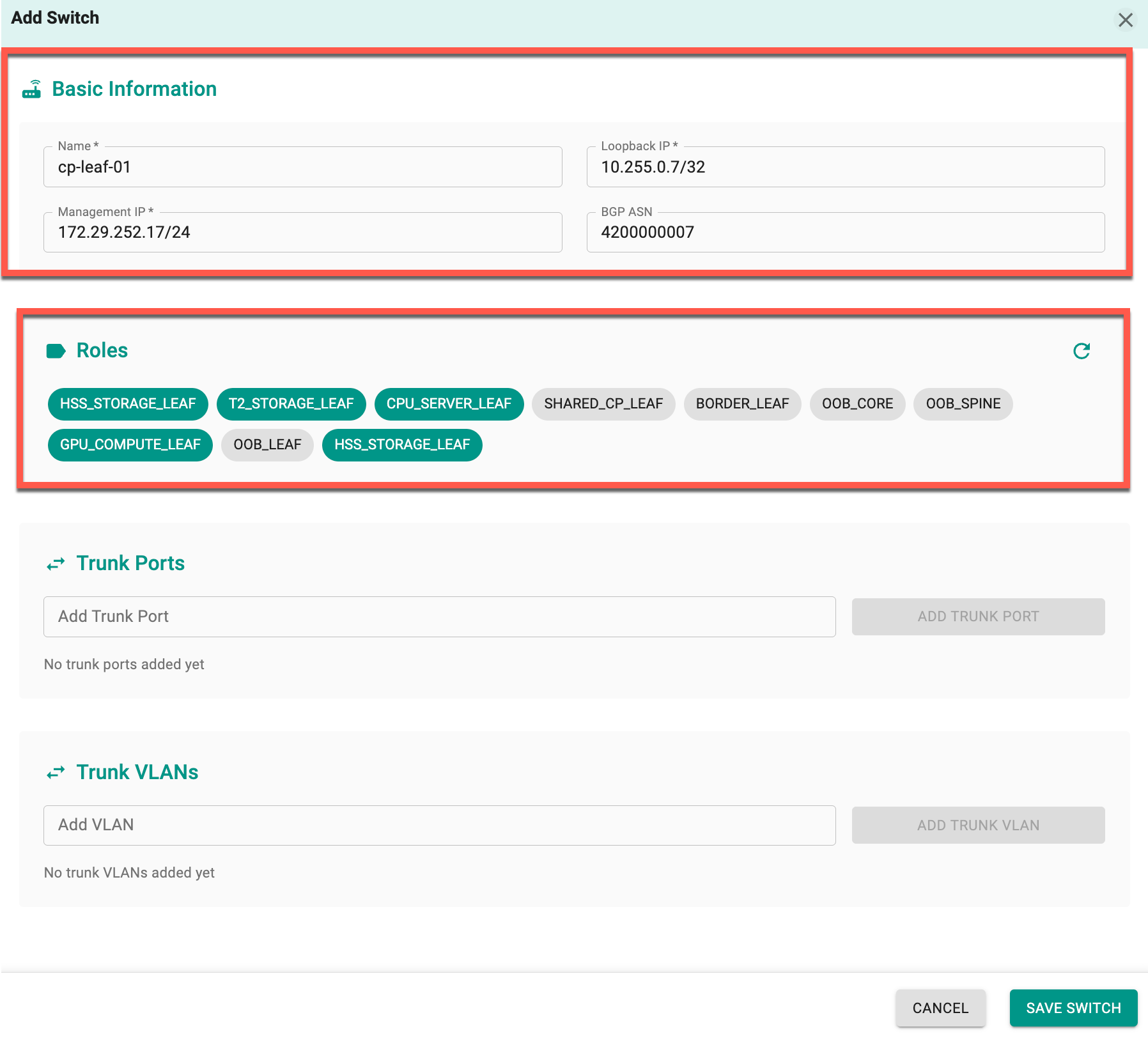

Add a Switch

To onboard a new switch:

1. Click Add Switch
2. Provide the following details:
3. Name (e.g., cp-leaf-01)
4. Loopback IP (e.g., 10.255.0.7/32)
5. Management IP (e.g., 172.29.252.17/24)
6. BGP ASN (e.g., 4200000007)
7. Assign one or more roles using the predefined tags (e.g., CPU_SERVER_LEAF, OOB_SPINE, etc.)
8. Optionally, add Trunk Ports and Trunk VLANs to specify switch uplink configuration
9. Click Save Switch to register

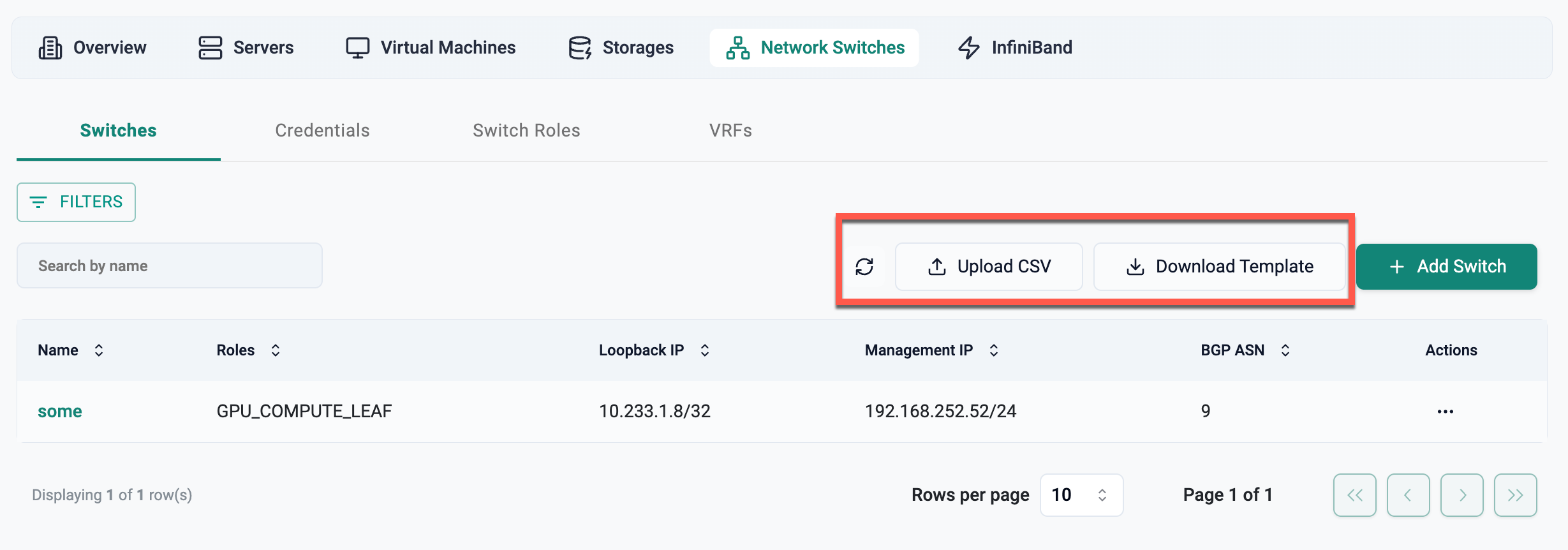

Additional Options

At the top of the Switches tab, you can perform the following actions:

• Refresh: Reloads the switch list to reflect any recent additions, deletions, or edits.
• Upload CSV: Allows bulk creation of switches using a structured CSV file. Each row represents a switch definition.
• Download Template: Downloads a sample CSV file with the correct format to help you structure your bulk import correctly.

---

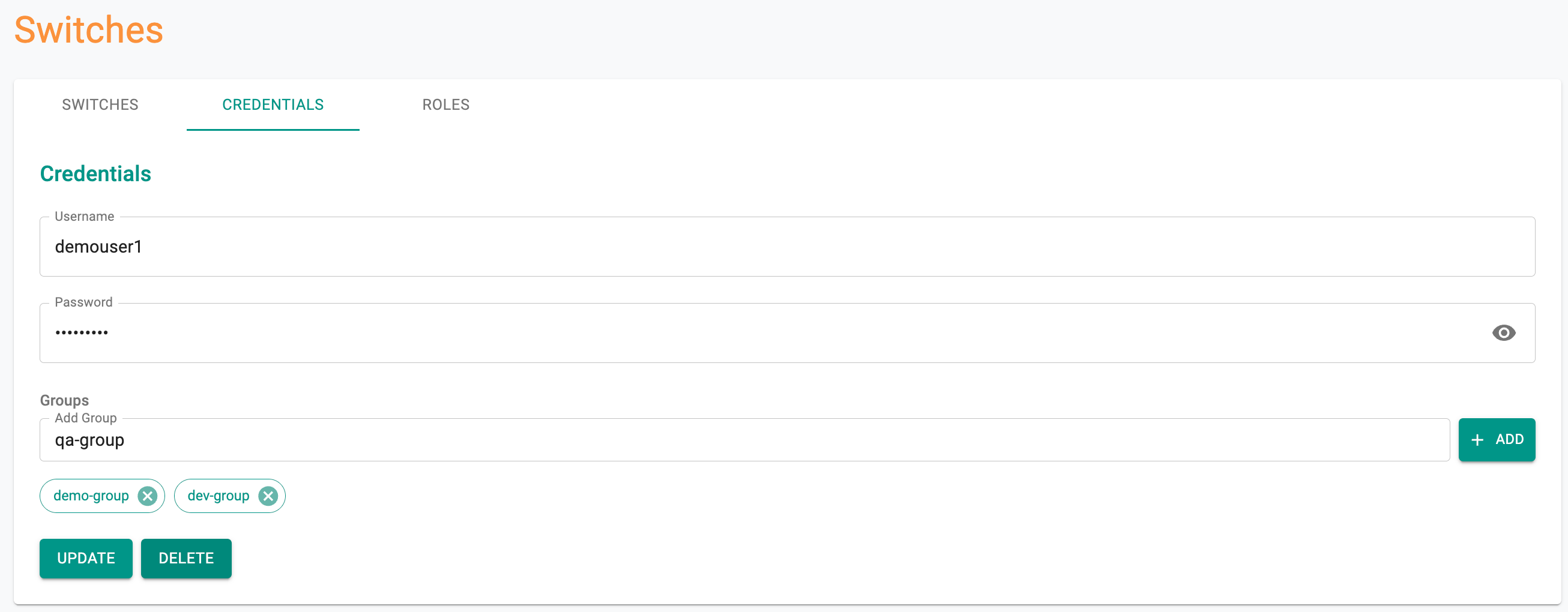

Credentials

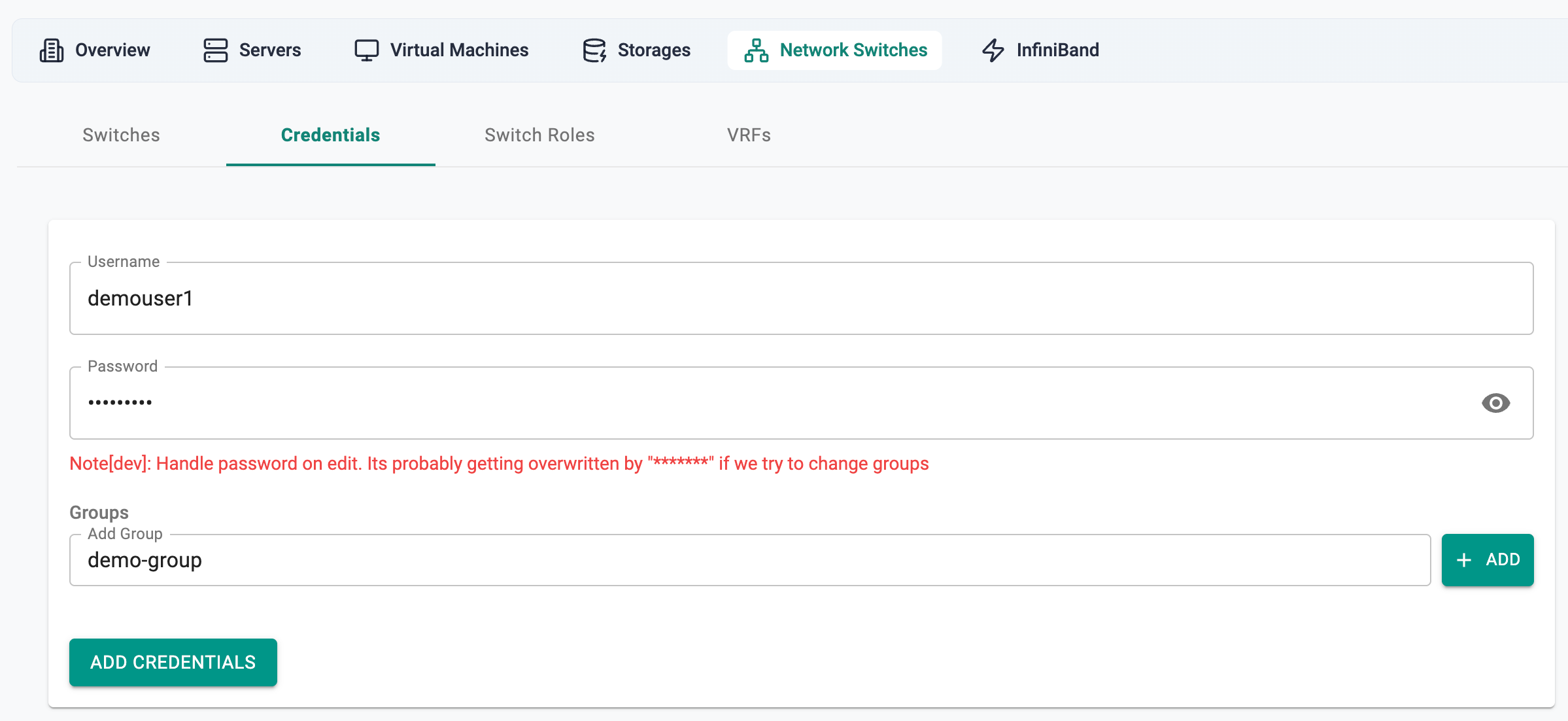

The Credentials tab allows administrators to securely store and manage login information required to access physical switches.

These credentials are used by the platform during automation workflows to configure and validate switch settings. Only cloud partner admins have access to this section.

Fields

Field	Description	Example
Username	The login username for accessing the switch	demouser1
Password	Associated login password (hidden in UI)	********
Groups	Logical grouping of switches for credential sharing and access control	demo-group, dev-group, qa-group

Admins can add a new group, update credentials, or delete them entirely using the Update and Delete buttons.

---

Roles

The Roles tab lets administrators define reusable network schemes for switches. Each role captures settings such as VLAN/VNI ranges, subnet allocation, DHCP relay servers, and route map associations that are critical for consistent network provisioning.

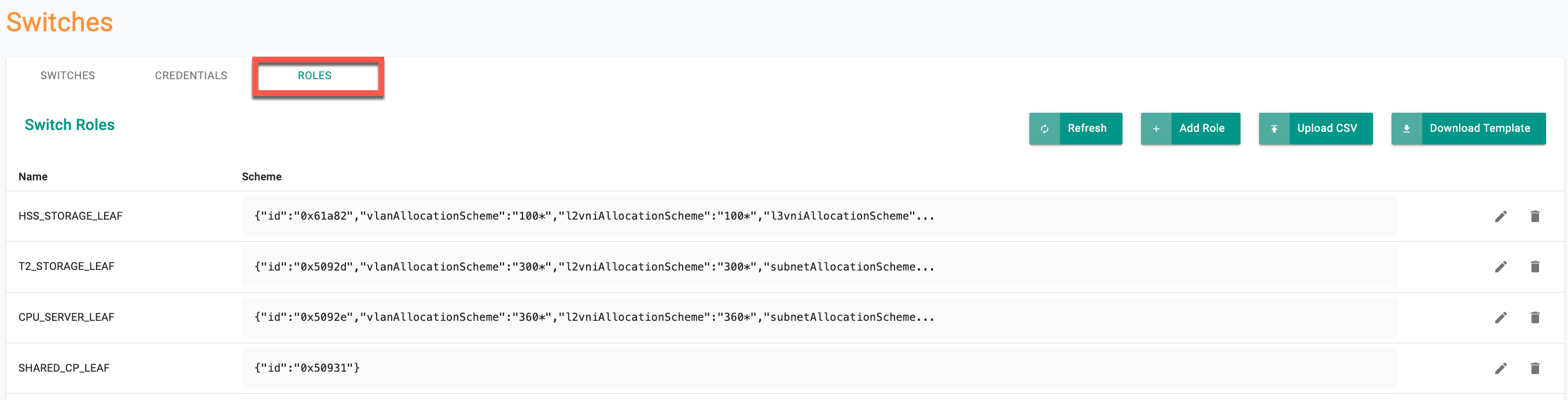

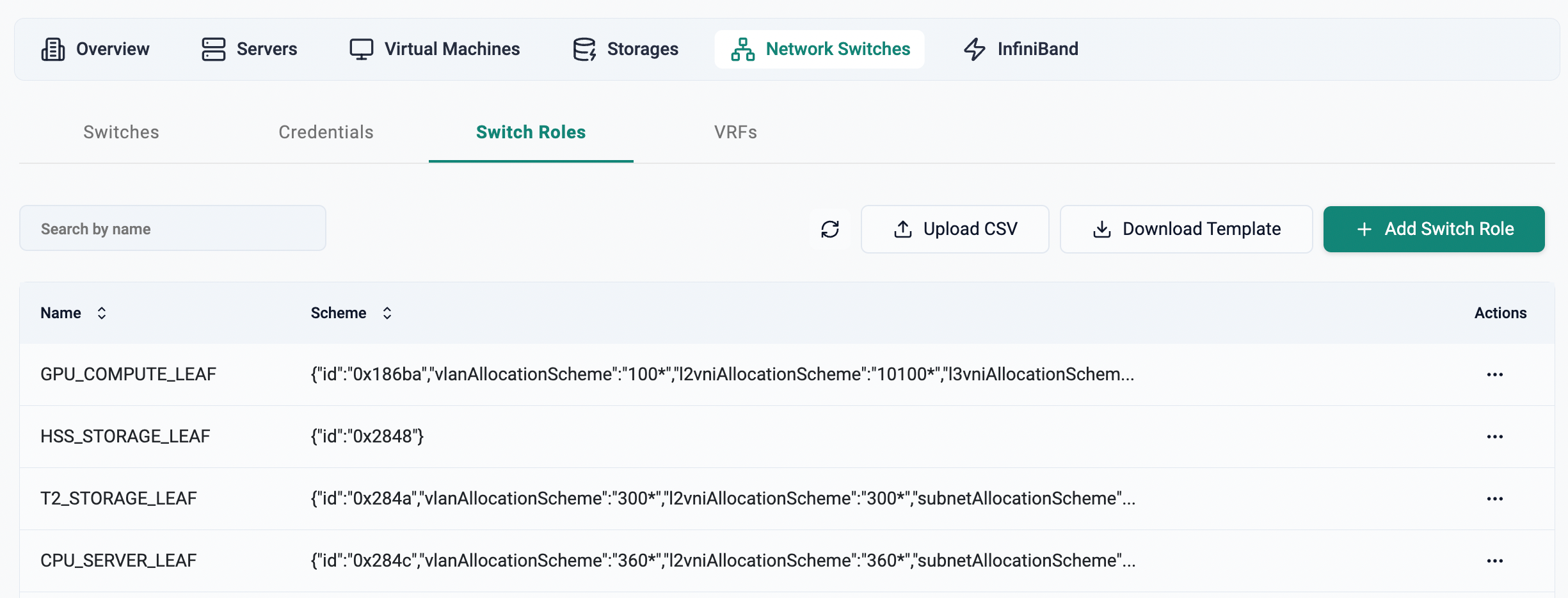

Table View

The roles list displays:

Field	Description	Example
Name	Name of the switch role	HSS_STORAGE_LEAF
Scheme	Encoded JSON object defining VLANs, VNIs, subnets, IP pools, and route policies	See detailed example below

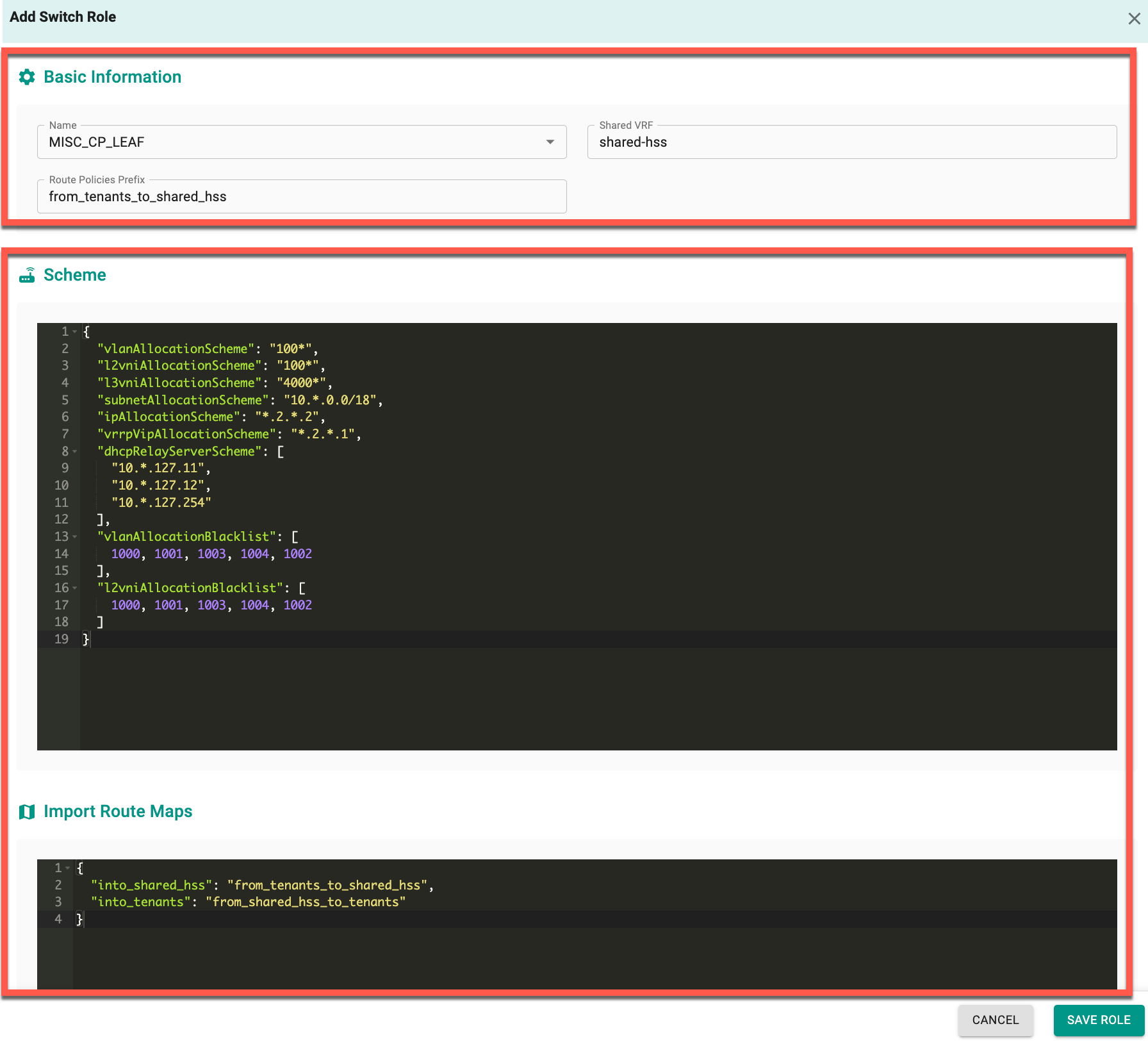

Add/Edit Role

Click Add Role or the edit icon to define or update a switch role.

Basic information

Field	Description	Example
Name	Select a predefined switch role from the dropdown	MISC_CP_LEAF, GPU_COMPUTE_LEAF
Shared VRF	Optional VRF shared across tenants	shared-hss
Route Policies Prefix	Optional prefix for identifying associated route maps	from_tenants_to_shared_hss

Scheme (Example)

{
  "vlanAllocationScheme": "100*",
  "l2vniAllocationScheme": "100*",
  "l3vniAllocationScheme": "4000*",
  "subnetAllocationScheme": "10.*.0.0/18",
  "ipAllocationScheme": "*.2.*.2",
  "vrrpVipAllocationScheme": "*.2.*.1",
  "dhcpRelayServerScheme": [
    "10.*.127.11",
    "10.*.127.12",
    "10.*.127.254"
  ],
  "vlanAllocationBlacklist": [
    1000, 1001, 1003, 1004, 1002
  ],
  "l2vniAllocationBlacklist": [
    1000, 1001, 1003, 1004, 1002
  ]
}

Import Route Maps (Example)

{
  "into_shared_hss": "from_tenants_to_shared_hss",
  "into_tenants": "from_shared_hss_to_tenants"
}

Additional Options

Users can perform the following actions:

• Refresh: Click the refresh icon to reload the list of roles and reflect any recent changes.
• Upload CSV: Bulk upload multiple roles using a CSV file formatted according to the system's expected structure.
• Download Template: Click to download a sample CSV file with the correct structure for role definitions. This helps ensure your data matches the expected format before uploading.

Once saved, the role becomes selectable when adding or editing switches under the Switches tab, ensuring consistent policy application across the environment.

---
