InfiniBand

The InfiniBand section under Inventory enables cloud providers to register and manage their InfiniBand network components, which are used to provide high-speed, low-latency networking across GPU servers in the data center. This view allows administrators to add management credentials for InfiniBand switches, enabling secure integration with provisioning workflows and ensuring accurate tracking of infrastructure used in GPU workloads.

⚠️ Important
The InfiniBand credentials must be configured by cloud provider administrators. These credentials are used by the system to access and update switch configurations as part of the provisioning process. End users do not interact with this interface.

---

Why use the InfiniBand view?

• Register InfiniBand switches with management credentials
• Enable automated access to network configurations during provisioning
• Centralize visibility and control over InfiniBand infrastructure
• Ensure accurate tracking of active vs. unused InfiniBand assets
• Support secure network isolation across tenant workloads
• Managed exclusively by cloud partner administrators for infrastructure readiness and isolation

---

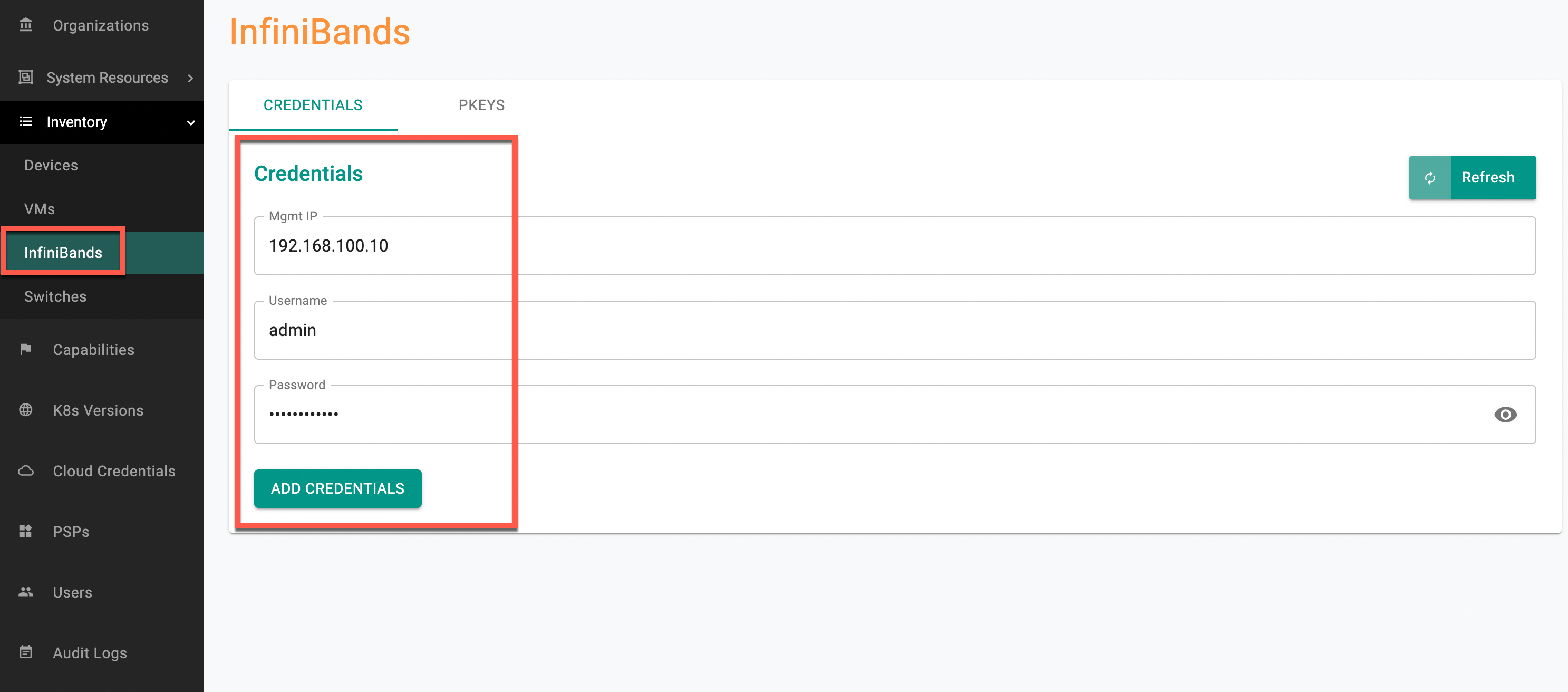

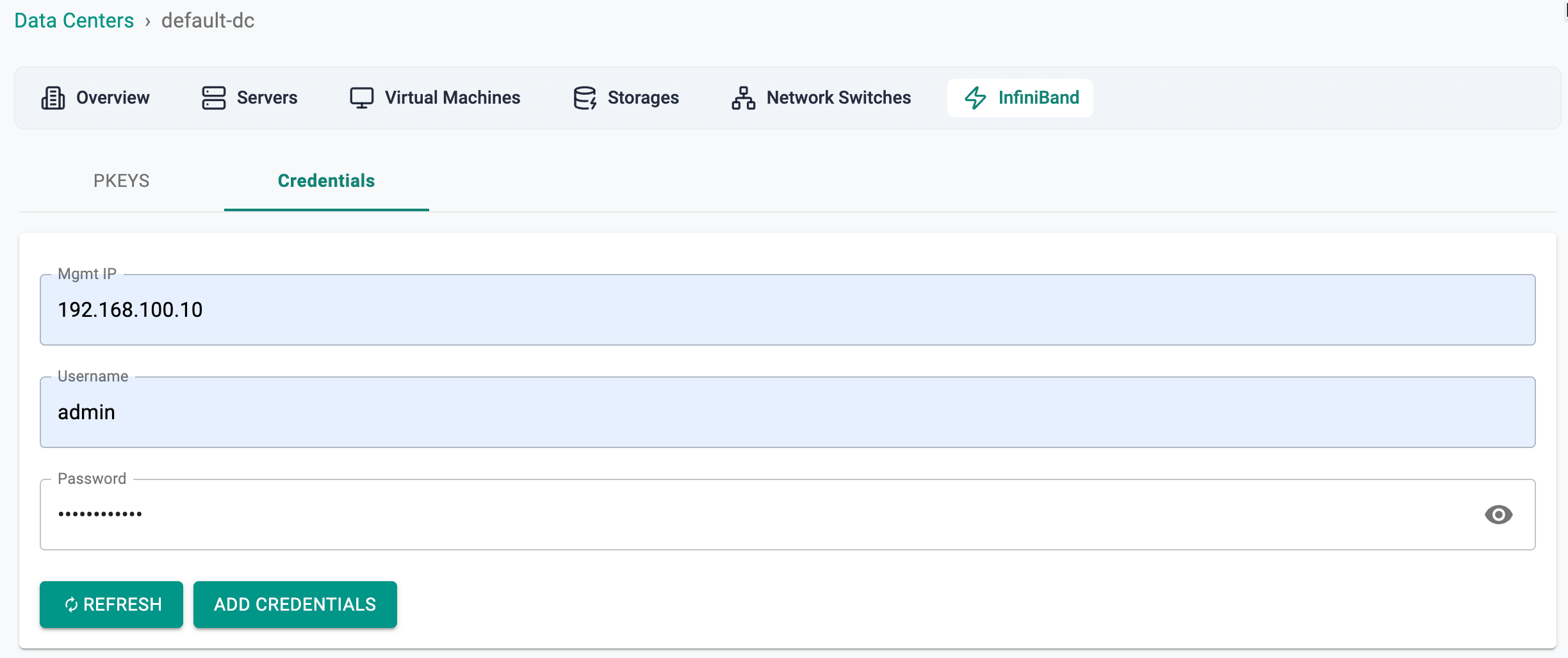

Adding InfiniBand Credentials

To register an InfiniBand device, provide the following fields:

Field	Description	Example
Mgmt IP	Management IP address of the switch	192.168.100.10
Username	Admin username with switch access	admin
Password	Password for the admin user	********

Click Add Credentials to register the device.

---

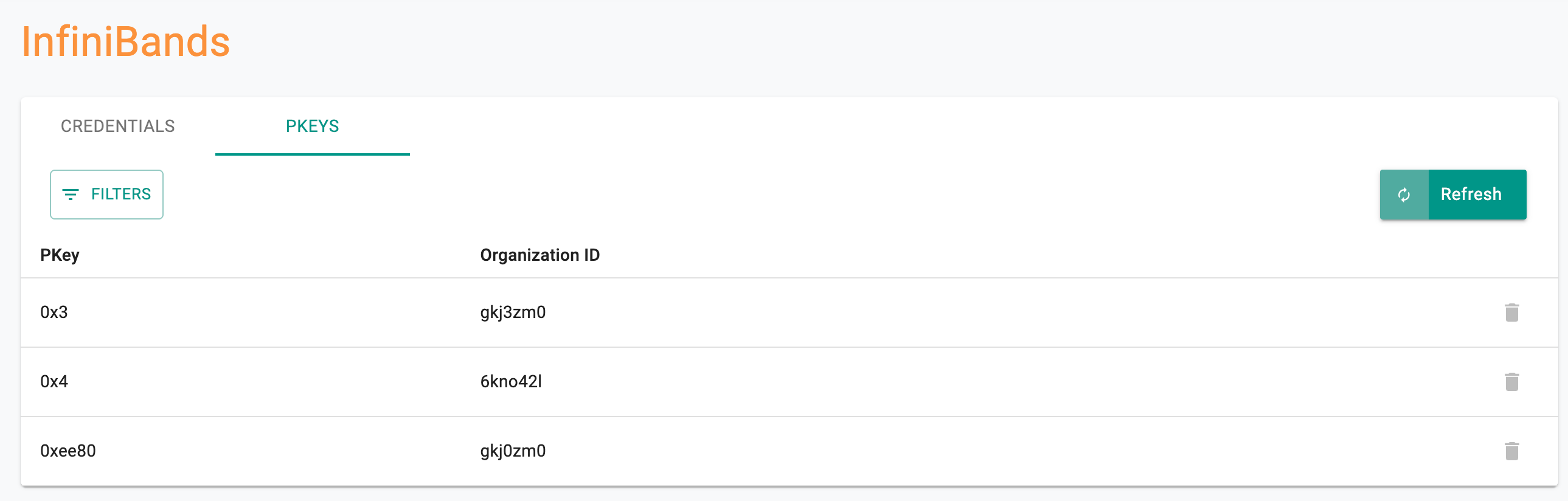

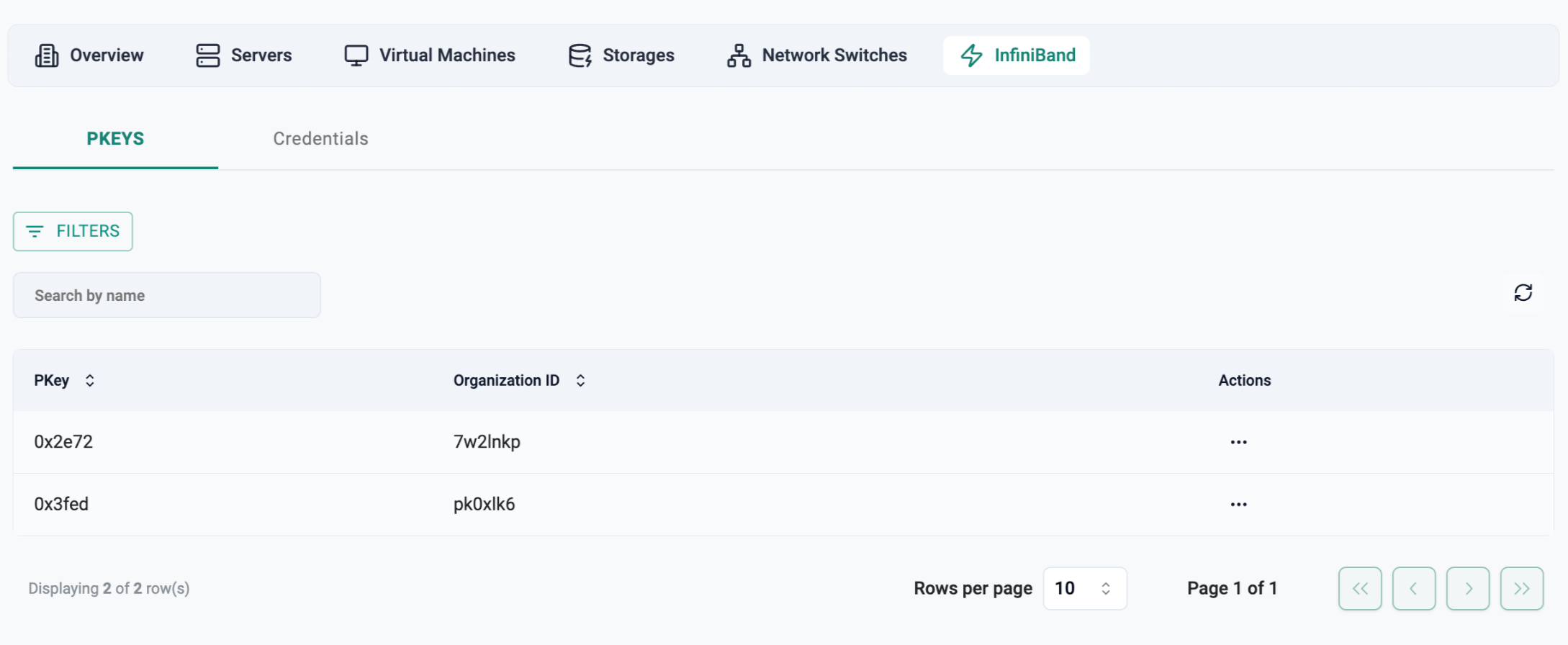

PKEYs Tab

The PKEYs tab is used to manage Partition Keys (PKEYs), which define isolated virtual fabrics within an InfiniBand network. This is critical for maintaining tenant isolation and traffic segmentation across compute environments.

Note: - Managing PKEYs may require coordination with the network admin responsible for InfiniBand fabric configuration - Use the Org ID filter in the PKEYs tab to view partition keys specific to an organization

---

Best Practices

• Use secure, limited-scope credentials for switch access
• Periodically rotate credentials to maintain security
• Monitor InfiniBand device health and access logs
• Review PKEY configurations during tenant onboarding or deprovisioning

---
